top224yn

three-terminal off-line PWM switch, TO220, 5W, -0.3 to 700 V, 100 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.70 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~0.70

PartNumber:: top224yn

Brand:: Power Integrations, Inc. - Power | Pack: TO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Luisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-12

From Other Seller

Part Number:top224yn
US $0.50 - 0.70
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

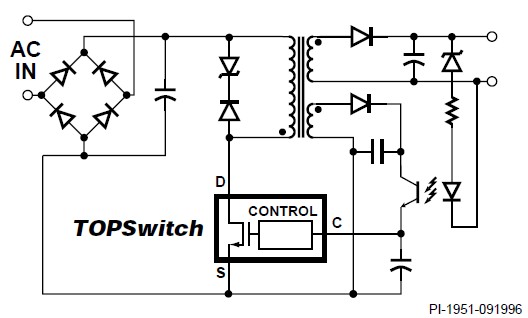

The TOP224YN is a three-terminal off-line PWM switch. The TOP224YN is a more cost effective and provides several enhancement over the first generation TOPSwitch family. The TOPSwitch-II TOP224YN extends the power range from 100W to 150W for 100/115/230 VAC input and from 50W to 90W for 85-265 VAC universal input. This brings TOPSwitch technology advantages to many new applications, i.e. TV, Monitor, Audio amplifiers, etc. Many significant circuit enhancements of the TOP224YN that reduce the sensitivity to board layout and line transients now make the design even easier.
