Product Summary

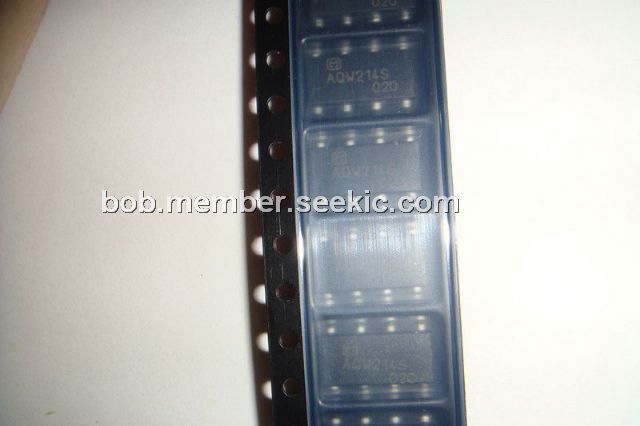

The aqw214sx is a photoMOS GU. It is used in measuring instruments, data communications, computers, industrial robots, high-speed inspection machines.

Parametrics

aqw214sx absolute maximum ratings: (1)LED forward current IF: 50mA; (2)LED reverse voltage VR: 5V; (3)Peak forward current IFP: 1A; (4)Power dissipation Pin: 75mW; (5)Load voltage (peak AC) VL: 400V; (6)Continuous load current IL: 0.08A; (7)Peak load current Ipeak: 0.24A; (8)Power dissipation Pout: 600mW; (9)Total power dissipation PT: 650mW; (10)I/O isolation voltage Viso: 1,500V AC; (11)Operating temperature Topr: –40℃ to +85℃; (12)Storage temperature Tstg: –40℃ to +100℃.

Features

aqw214sx features: (1)2 channels in miniature SOP-8-pin design; (2)Controls low-level analog signals; (3)Low-level off state leakage current of max. 1μA.

Diagrams

aqw214sx diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AQW214SX
AQW214SX

Panasonic Electric Works

Solid State Relays 400v 100mA SOP Form A Norm-Open

Data Sheet

0-1000: $3.22
