Product Summary

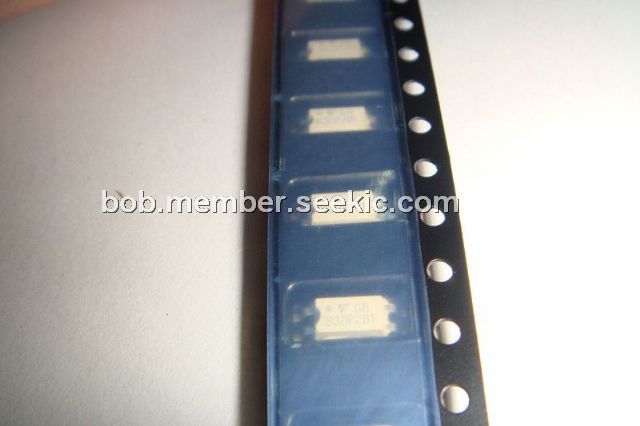

The TLP281GB is a very small and thin coupler, suitable for surface mount assembly in applications such as PCMCIA Fax modem,programmable controllers. The TLP281GB consists of photo transistor,optically coupled to a gallium arsenide infrared emitting diode.
Parametrics
TLP281GB absolute maximum ratings: (1)Forward Current: 50 mA; (2)Forward Current Derating: -0.7 (Ta≥53℃) mA/℃; (3)Pulse Forward Current: 1 A; (4)Reverse Voltage: 5 V; (5)Junction Temperature: 125 ℃; (6)Collector-Emitter Voltage: 80 V; (7)Emitter-Collector Voltage: 7 V; (8)Collector Current: 50 mA; (9)Collector Power Dissipation: 150 mW; (10)Collector Power Dissipation Derating(Ta≥25℃: -1.5 mW /℃.
Features
TLP281GB features: (1)Collector-Emitter Voltage : 80 V (MIN); (2)Current Transfer Ratio : 50% (MIN), Rank GB : 100% (MIN); (3)Isolation Voltage : 2500 Vrms (MIN); (4)UL Recognized : UL1577 , File No. E67349; (5)BSI Approved : BS EN 60065: 1994, BS EN 41003: 1997 Certificate No. 8143, 8144.

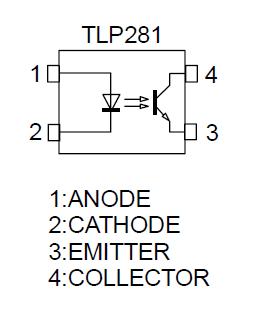

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLP281GB |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
