Product Summary

The aqy212eha is a GU-E PhotoMOS. The applications of the AQY212EHA include Modem, Telephone equipment, Security equipment, Sensors.

Parametrics

aqy212eha absolute maximum ratings: (1)LED forward current: 50mA; (2)LED reverse voltage: 5 V; (3)Peak forward current: 1 A at f =100 Hz, Duty factor = 0.1%; (4)Power dissipation: 75mW; (5)Load voltage (peak AC): 60 V; (6)Continuous load current: 0.55 A; (7)Peak load current: 1.5 A at 100 ms (1 shot), VL = DC; (8)Power dissipation: 500mW; (9)Total power dissipation: 550mW; (10)I/O isolation voltage: 5,000 V AC; (11)Temperature limits: Operating: –40℃ to +85℃, Storage: –40 ℃ to +100℃.

Features

aqy212eha features: (1)Reinforced insulation 5,000 V type More than 0.4 mm internal insulation distance between inputs and outputs; (2)Compact 4-pin DIP size. The device comes in a compact (W)6.4×(L)4.78×(H)3.2mm; (3)Controls low-level analog signals PhotoMOS relays feature extremely low closed-circuit offset voltage to enable control of low-level analog signals without distortion; (4)High sensitivity, low ON resistance Can control a maximum 0.13 A load current with a 5 mA input current.

Diagrams

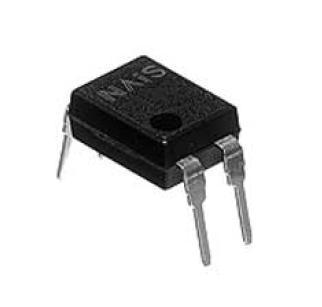

aqy212eha diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AQY212EHA
AQY212EHA
Panasonic Electric Works
Solid State Relays 60V 550mA DIP Form A Norm-Open
Data Sheet
0-1: $2.95
1-25: $2.69
25-50: $2.41
50-100: $2.05
