Product Summary

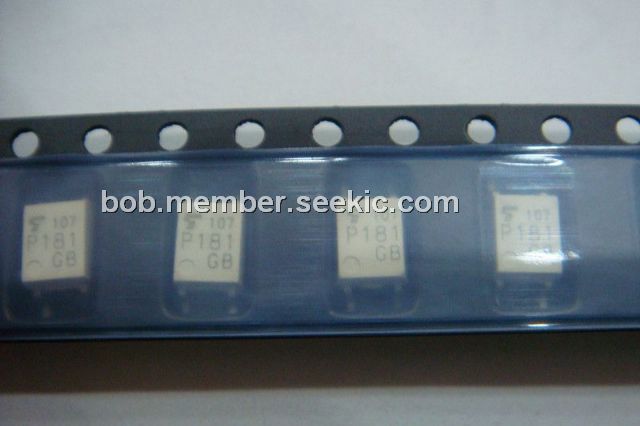

The tlp181 is a small outline coupler, suitable for surface mount assembly. It consists of a photo transistor optically coupled to a gallium arsenide infrared emitting diode in a four lead plastic DIP package.
Parametrics
tlp181 absolute maximum ratings: (1)Forward current IF: 50mA; (2)Forward current detating △IF/℃: -0.7mA/℃(Ta≥53℃); (3)Pulse forward current IFP: 1A(100μs pulse, 100pps); (4)Reverse voltage VR: 5V; (5)Junction temperature Ti: 125℃; (6)Storage temperature range Tstg: -55 to 125℃; (7)Operating temperature range Topr: -55 to 100℃; (8)Lead soldering temperature Tsol: 260(10s)℃; (9)Total package power dissipation PT: 200mW; (10)Total package power dissipation derating(Ta≥25℃) △PT/℃: -2.0mW/℃; (11)Isolation voltage BVS: 3750Vrms(AC, 1min, RH≤60%).
Features
tlp181 features: (1)Collector-emitter voltage: 80V(min); (2)Current transfer ratio: 50%(min); rank GB: 100%(min); (3)Isolation voltage: 3750Vrms(min); (4)UL recognized: UL1577, File No.E67349.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLP181 |
|
PHOTOCOUPLER TRANS OUT 6MFSOP-4 |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
TLP181(BL-TPR) |
|
PHOTOCOUPLER TRANS OUT 6MFSOP-4 |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
 |
TLP181(BL-TPR,F) |
Toshiba |
Transistor Output Optocouplers 80V Photocoupler 3750 Vrms 200 to 600 |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
TLP181(BL-TPR,F,T) |
Toshiba |
Transistor Output Optocouplers DC Transistor Miniflat |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
TLP181(F) |
Toshiba |
Transistor Output Optocouplers 80V Photocoupler 3750 Vrms 500Vpk |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
 |
TLP181(F,T) |
Toshiba |
PHOTOCOUPLER TRANS-OUT 4-SMD |
Data Sheet |
|
|
||||||||||||||||||||
|
TLP181(GB) |
|
PHOTOCOUPLER TRANS OUT 6MFSOP-4 |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
TLP181(GB,F) |
Toshiba |
Transistor Output Optocouplers 80V Photocoupler 3750 Vrms 100 to 600 |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
