Product Summary

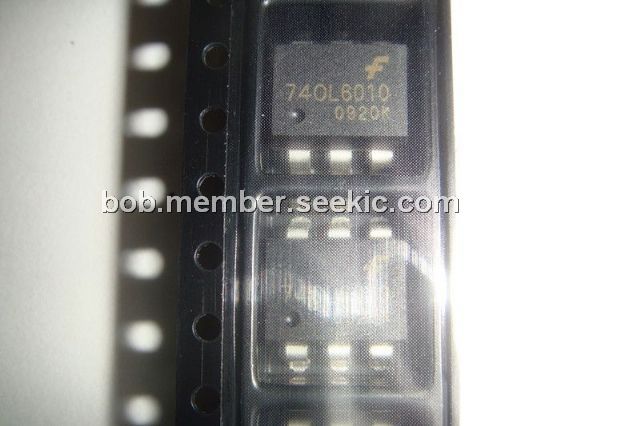

The 74ol6010 is a high-speed logic-to-logic optocoupler. It consists of four device types offering LSTTL to TTL and LSTTL to CMOS interfacing. Each of these interfacing functions is available as a buffer (A=B), or as an inverter (A=B). The 74ol6010 may also by used to drive power MOSFETS or transistors up to 15 volts. The applications of the 74ol6010 are Transmission line interface, Excellent as bridged receiver in fast LAN highways, Bus interface, Logic family interface with ground loop noise elimination, High speed AC/DC voltage sensing, Driver for power semiconductor devices, Level shifting, Replaces fast pulse transformers.
Parametrics
74ol6010 absolute maximum ratings: (1)Storage Temperature:-55℃ to +125℃; (2)Operating Temperature:0℃ to +70℃; (3)Lead Solder Temperature:260 for 10 sec℃; (4)Power Dissipation:350mW; (5)Input Supply Voltage:7V; (6)Input Voltage:7V; (7)Average Output Current:40mA; (8)Output Supply Voltage:18V; (9)Output Voltage:18V.
Features
74ol6010 features: (1)Industry first LSTTL to TTL and LSTTL to CMOS complete logic-to-logic optocoupler; (2)Incorporates LED drive circuitry - use as logic gate; (3)Very high speed; (4)Choice of buffer or inverter; (5)Choice of TTL or CMOS compatible output up to 15 volts; (6)Fan-out of 10 TTL loads, fan-in 1 LSTTL load; (7)Internal noise shield - very high CMR of ±15 kV/μS; (8)UL recognized (File #E90700); (9)Same noise immunity as LSTTL/TTL.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 74OL6010 |
Fairchild Semiconductor |
High Speed Optocouplers DIP-6 HS OPTOLOGIC |
Data Sheet |
Negotiable |
|
||||
|
74OL6010_Q |
Fairchild Semiconductor |
High Speed Optocouplers DIP-6 HS OPTOLOGIC |
Data Sheet |
Negotiable |
|
||||
|
74OL60103S |
Fairchild Semiconductor |
High Speed Optocouplers HS/LL Optocoupler LSTTL/CMOS SM-DIP6 |
Data Sheet |
Negotiable |
|
||||
|
74OL60103SD |
Fairchild Semiconductor |
High Speed Optocouplers HS/LL Optocoupler LSTTL/CMOS SM-DIP6 |
Data Sheet |
Negotiable |
|
||||
|
74OL6010300 |
Fairchild Semiconductor |
High Speed Optocouplers HS/LL Optocoupler LSTTL to CMOS |
Data Sheet |
Negotiable |
|
||||
|
74OL6010300W |
Fairchild Semiconductor |
High Speed Optocouplers HS/LL Optocoupler LSTTL to CMOS |
Data Sheet |
Negotiable |
|
||||
|
74OL6010SD |
Fairchild Semiconductor |
High Speed Optocouplers HS/LL Optocoupler LSTTL/CMOS SM-DIP6 |
Data Sheet |
Negotiable |
|
||||
|
74OL6010S |
Fairchild Semiconductor |
High Speed Optocouplers SO-8 HS OPTOLOGIC |
Data Sheet |
Negotiable |
|
||||
