Product Summary

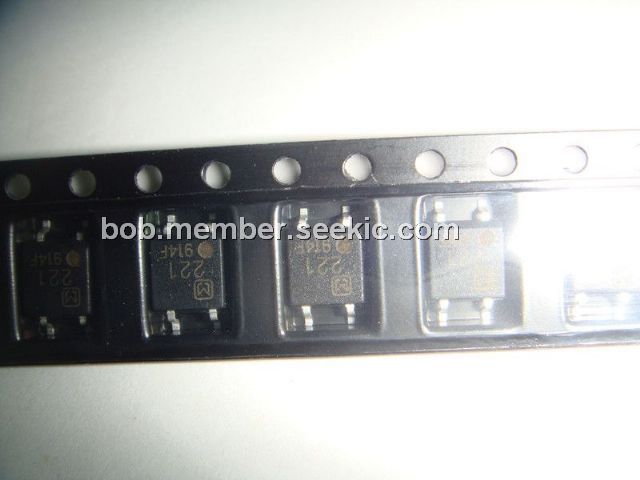

The aqy221n2vy is a photoMOS relay. The applications are Measuring and testing equipment: Semiconductor testing equipment, Probe cards, Datalogger, Board tester and other testing equipment, Telecommunication and broadcasting equipment, Medical equipment.
Parametrics
aqy221n2vy absolute maximum ratings: (1)LED forward current IF: 50mA; (2)LED reverse voltage VR: 5V; (3)Peak forward current IFP: 1A; (4)Power dissipation Pin: 75mW; (5)Load voltage (peak AC) VL: 40V; (6)Continuous load current IL: 0.12A; (7)Peak load current Ipeak: 0.3A; (8)Power dissipation Pout: 250mW; (9)Total power dissipation PT: 300mW; (10)I/O isolation voltage Viso: 1,500V AC; (11)Operating temperature Topr: –40℃ to +85℃; (12)Storage temperature Tstg: –40℃ to +100℃.
Features
aqy221n2vy features: (1)Micro-miniature package (SSOP) using a new flat lead terminal shape; (2)Full lineup with C×R10.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AQY221N2VY |
Panasonic Electric Works |
Solid State Relays 40v 120mA DIP Form A Norm-Open |
Data Sheet |
|
|
||||||||||||
