Product Summary
The h11f1 is a photo FET optocoupler. It consists of a Gallium-Aluminum-Arsenide IRED emitting diode coupled to a symmetrical bilateral silicon photo-detector. The detector is electrically isolated from the input and performs like an ideal isolated FET designed for distortion-free control of low level AC and DC analog signals. The h11f1 is mounted in dual in-line packages. The applications of the h11f1 include: Isolated variable attenuator, Automatic gain control, Active filter fine tuning/band switching, Isolated sample and hold circuit, Multiplexed, optically isolated A/D conversion.
Parametrics
h11f1 absolute maximum ratings: (1)TSTG Storage Temperature: -55 to +150℃; (2)TOPR Operating Temperature: -55 to +100℃; (3)TSOL Lead Solder Temperature: 260℃ for 10 sec; (4)IF Continuous Forward Current: 60mA; (5)VR Reverse Voltage: 5V; (6)IF(pk) Forward Current – Peak (10 μs pulse, 1% duty cycle): 1A; (7)PD LED Power Dissipation 25℃ Ambient: 100mW, Derate Linearly from 25℃: 1.33mW/℃.
Features
h11f1 features: (1)Extremely low offset voltage; (2)60 Vpk-pk signal capability; (3)No charge injection or latch-up; (4)ton, toff≤15μS; (5)UL recognized (File #E90700).

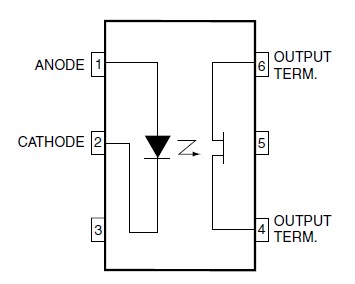

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
H11F1 |
Fairchild Semiconductor |
Transistor Output Optocouplers DIP-6 ANALOG FET |
Data Sheet |
Negotiable |
|
|||||||||||||
H11F1_Q |
Fairchild Semiconductor |
Transistor Output Optocouplers DIP-6 ANALOG FET |
Data Sheet |
Negotiable |
|
|||||||||||||
H11F1300 |
Fairchild Semiconductor |
Transistor Output Optocouplers Optocoupler FET Bilateral analog |
Data Sheet |
Negotiable |
|
|||||||||||||
H11F1300W |
Fairchild Semiconductor |
Transistor Output Optocouplers Optocoupler FET Bilateral analog |
Data Sheet |
Negotiable |
|
|||||||||||||
H11F13S |
Fairchild Semiconductor |
Transistor Output Optocouplers Optocoupler FET Bilateral analog |
Data Sheet |
Negotiable |
|
|||||||||||||
H11F13SD |
Fairchild Semiconductor |
Transistor Output Optocouplers Optocoupler FET Bilateral analog |
Data Sheet |
Negotiable |
|
|||||||||||||
H11F1M |
Fairchild Semiconductor |
Transistor Output Optocouplers ANALOG FET |
Data Sheet |
|
|
|||||||||||||
H11F1SD |
Fairchild Semiconductor |
Transistor Output Optocouplers Optocoupler FET Bilateral analog |
Data Sheet |
Negotiable |
|
