Product Summary
The CPC1150NTR is a miniature 1-Form-B solid state relay which uses optically coupled MOSFET technology to provide 1500V of input to output isolation. The efficient MOSFET switches and photovoltaic die of the CPC1150NTR use Clare’s patented OptoMOS architecture. The optically-coupled input is controlled by a highly efficient GaAIAs infrared LED. The applications of the CPC1150NTR include: (1)Telecommunications:Telecom Switching,Tip/Ring Circuits, Modem Switching (Laptop, Notebook, Pocket Size), Hookswitch, Dial Pulsing, Ground Start, Ringer Injection; (2)Instrumentation: Multiplexers, Data Acquisition, Electronic Switching, I/O Subsystems, Meters (Watt-Hour, Water, Gas); (3)Medical Equipment-Patient/Equipment Isolation; (4)Security; (5)Aerospace; (6)Industrial Controls.
Parametrics
CPC1150NTR absolute maximum ratings: (1)Input Power Dissipation:150 mW; (2)Input Control Current: 50 mA, Peak (10ms): 1 A; (3)Reverse Input Voltage: 5 V; (4)Total Power Dissipation: 400 mW; (5)Isolation Voltage Input to Output: 1500 VRMS; (6)Operational Temperature: -40 to +85 ℃; (7)Storage Temperature: -40 to +125 ℃; (8)Soldering Temperature(10 Seconds Max.): +220 ℃.
Features
CPC1150NTR features: (1)Small 4 Pin SOP Package; (2)Low Drive Power Requirements (TTL/CMOS Compatible); (3)No Moving Parts; (4)High Reliability; (5)Arc-Free With No Snubbing Circuits; (6)1500VRMS Input/Output Isolation; (7)FCC Compatible; (8)No EMI/RFI Generation; (9)Machine Insertable, Wave Solderable; (10)Tape & Reel Version Available.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

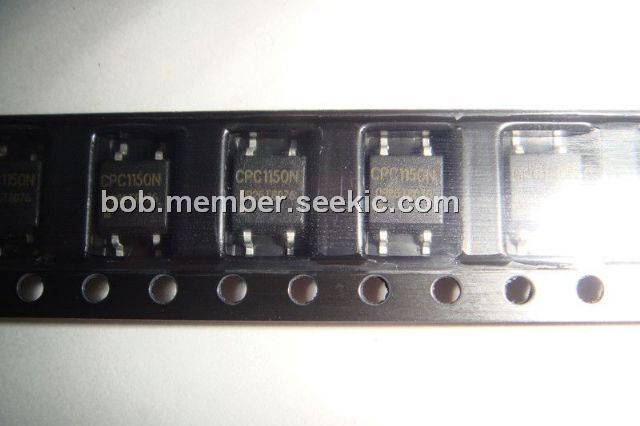

CPC1150NTR |
Clare |
Solid State Relays Single Pole Normally Closed |
Data Sheet |
Negotiable |
|
|||||
