moc3083m

6-pin dip, zero-cross optoisolator, 800V, 60 mA, 120 mW, moc3083m

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.35~0.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.35~0.40

PartNumber:: moc3083m

Brand:: Fairchild Semiconductor - Fairchild | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Luisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-12

From Other Seller

Part Number:moc3083m
US $0.35 - 0.40
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

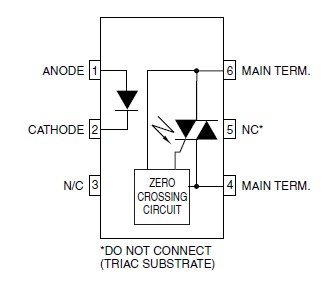

The moc3083m is a 6-pin dip zero-cross optoisolator. It consists of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver. The moc3083m is designed for use with a discrete power triac in the interface of logic systems to equipment powered from 240 VAC lines, such as solid-state relays, industrial controls, motors, solenoids and consumer appliances, etc. The applications of the moc3083m include: Solenoid/valve controls, Lighting controls, Static power switches, AC motor drives, Temperature controls, E.M. contactors, AC motor starters, Solid state relays.

Parametrics

moc3083m absolute maximum ratings: (1)Storage Temperature TSTG: -40 to +150 ℃; (2)Operating Temperature TOPR: -40 to +85 ℃; (3)Lead Solder Temperature TSOL: 260 for 10 sec ℃; (4)Junction Temperature Range TJ: -40 to +100 ℃; (5)Isolation Surge Voltage(peak AC voltage, 60Hz, 1 sec duration)VISO: 7500 Vac(pk); (6)Total Device Power Dissipation @ 25℃ PD: 250 mW; Derate above 25℃: 2.94 mW/℃; (7)Continuous Forward Current IF: 60 mA; (8)Reverse Voltage VR: 6 V; (9)Total Power Dissipation 25℃ Ambient PD: 120 mW; Derate above 25℃: 1.41 mW/℃.

Features

moc3083m features: (1)Underwriters Laboratories (UL) recognized - file #E90700, Volume 2; (2)VDE recognized - file #102497 - add option V (e.g., MOC3083VM); (3)Simplifies logic control of 240 VAC power; (4)Zero voltage crossing; (5)dv/dt of 1500 V/μs typical, 600 V/μs guaranteed; (6)Compatible with Fairchild FKPF12N80 discrete power triac.
