el3h7c-g

4 pin ssop phototransistor photocoupler, 5mA, 5V, 200 mW, el3h7c-g

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.08~0.09 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.08~0.09

PartNumber:: el3h7c-g

Brand:: Everlight Electronics Co., Ltd - Everlight | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Luisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-11

From Other Seller

Part Number:el3h7c-g
US $0.08 - 0.09
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

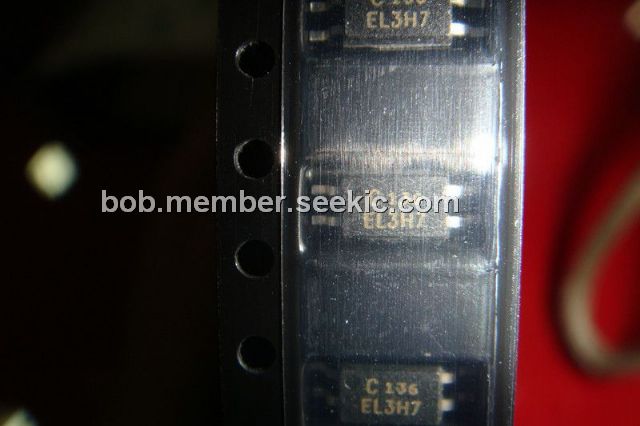

The el3h7c-g is a 4 pin ultra small ssop phototransistor photocoupler. It consists of an infrared emitting diode, optically coupled to a phototransistor detector encapsulated with green compound. The el3h7c-g is packaged in a 4-pin small outline SMD package. The applications of it include: DC-DC Converters, Programmable controllers, Telecommunication equipments, Signal transmission between circuits of different potentials and impedances.

Parametrics

el3h7c-g absolute maximum ratings: (1)Input Forward current IF: 50 mA; (2)Peak forward current IFP: 1 A; (3)Power dissipation PD: 70mW; Derating factor (above 90 ℃): 2.0 mW/℃; (4)Output Collector-Emitter voltage VCEO: 80 V; (5)Output Emitter-Collector voltage VECO: 7 V; (6)Total power dissipation Ptot: 200 mW; (7)Isolation voltage Viso: 3750 V rms; (8)Operating temperature Topr: -55~+110 ℃; (9)Storage temperature Tstg: -55~+125 ℃; (10)Soldering temperature Tsol: 260 ℃.

Features

el3h7c-g features: (1)Halogens free; (2)Current transfer ratio(CTR: 50~600% at IF =5mA, VCE =5V), (CTR: 40~320% at IF =10mA, VCE =5V); (3)High isolation voltage between input and output (Viso=3750 V rms ); (4)Compact 4 Pin SSOP with a 2.0 mm profile; (5)Pb free and RoHS compliant.; (6)UL approved (No. 214129); (7)VDE approval (132249); (8)SEMKO approved; (9)NEMKO approved; (10)DEMKO approved; (11)FIMKO approved; (12)CSA approved.

Diagrams
