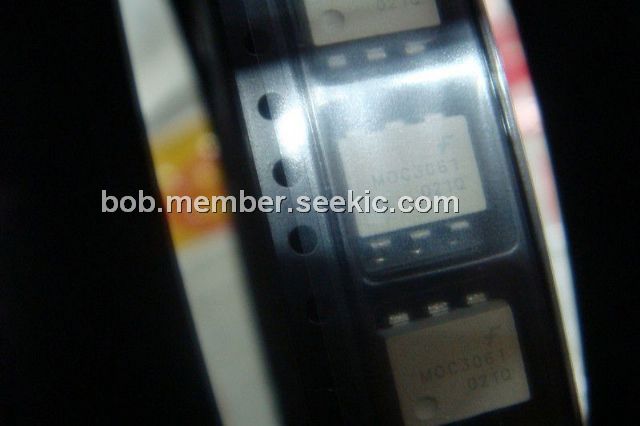

moc3061sm

6-pin DIP, zero-cross phototriac driver optocoupler, 600V, 60 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.25~0.35 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.25~0.35

PartNumber:: moc3061sm

Brand:: Fairchild Semiconductor - Fairchild | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Luisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-12

From Other Seller

Part Number:moc3061sm
US $0.25 - 0.35
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

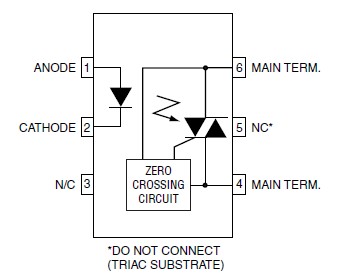

The moc3061sm is a 6-pin DIP zero-cross phototriac driver optocoupler. It consists of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver. The moc3061sm is designed for use with a triac in the interface of logic systems to equipment powered from 115/240 VAC lines, such as solid-state relays, industrial controls, motors, solenoids and consumer appliances, etc. The applications of the moc3061sm include: Solenoid/valve controls, Static power switches, Temperature controls, AC motor starters, Lighting controls, AC motor drives, E.M. contactors, Solid state relays.

Parametrics

moc3061sm absolute maxing ratings: (1)Storage Temperature TSTG: -40 to +150 ℃; (2)Operating Temperature TOPR: -40 to +85 ℃; (3)Lead Solder Temperature TSOL: 260 for 10 sec ℃; (4)Junction Temperature Range TJ: -40 to +100 ℃; (5)Isolation Surge Voltage(peak AC voltage, 60Hz, 1 sec duration)VISO: 7500 Vac(pk); (6)Total Device Power Dissipation @ 25℃ PD: 250 mW; Derate above 25℃: 2.94 mW/℃; (7)Continuous Forward Current IF: 60 mA; (8)Reverse Voltage VR: 6 V.

Features

moc3061sm features: (1)Simplifies logic control of 115/240 VAC power; (2)Zero voltage crossing; (3)600 V/ms guaranteed; (4)VDE recognized (File # 94766); (5)Underwriters Laboratories (UL) recognized (File #E90700, volume 2).
