Product Summary

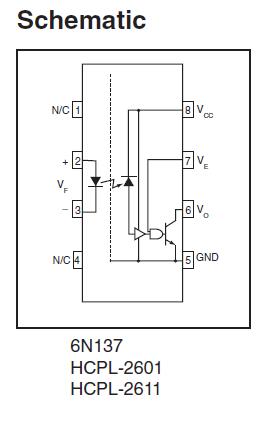

The 6N137 is a single-channel optocoupler. It consists of a 850 nm AlGaAS LED, optically coupled to a very high speed integrated photodetector logic gate with a strobable output. This output of 6N137 features an open collector, thereby permitting wired OR outputs. The coupled parameters are guaranteed over the temperature range of -40℃ to +85℃. A maximum input signal of 5 mA will provide a minimum output sink current of 13mA (fan out of 8). The applications of the 6N137 include Ground loop elimination, LSTTL to TTL, LSTTL or 5-volt CMOS, Line receiver, data transmission, Data multiplexing, Switching power supplies, Pulse transformer replacement, Computer-peripheral interface.

Parametrics

6N137 absolute maximum ratings: (1)Storage Temperature: -55 to +125 ℃; (2)Operating Temperature: -40 to +85 ℃; (3)Lead Solder Temperature: 260 for 10 sec ℃; (4)DC/Average Forward: 50 mA at Single Channel; (5)Input Current: 30 mA at Dual Channel (Each Channel); (6)Enable Input Voltage Not to exceed VCC by more than 500 mV: 5.5 V at Single Channel; (7)Reverse Input Voltage: 5.0 V at Each Channel; (8)Power Dissipation: 100 mW at Single Channel; (9)Dual Channel (Each Channel): 45 mW.

Features

6N137 features: (1)Very high speed-10 MBit/s; (2)Superior CMR-10 kV/μs; (3)Double working voltage-480V; (4)Fan-out of 8 over -40℃ to +85℃; (5)Logic gate output; (6)Strobable output; (7)Wired OR-open collector; (8)U.L. recognized.
