Product Summary

The fod817d3sd is a 4-PIN phototransistor optocoupler. It consists of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 4-pin dual in-line package. The fod817d3sd is used in Power supply regulators, Digital logic inputs, Microprocessor inputs.

Parametrics

fod817d3sd absolute maxing ratings: (1)Storage Temperature TSTG: -55 to +125 ℃; (2)Operating Temperature TOPR: -30 to +100 ℃; (3)Lead Solder Temperature TSOL: 260℃ for 10 sec; (4)Total Device Power Dissipation PD: 200 mW; (5)Continuous Forward Current IF: 50 mA; (6)Reverse Voltage VR: 6 V.

Features

fod817d3sd features: (1)Applicable to Pb-free IR reflow soldering; (2)Compact 4-pin package; (3)Current transfer ratio in selected groups: 300% to 600%; (4)C-UL, UL and VDE approved; (5)High input-output isolation voltage of 5000 Vrms.

Diagrams

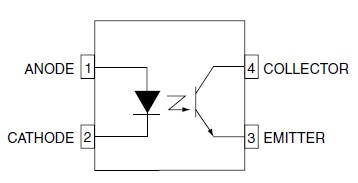

fod817d3sd diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FOD817D3SD
FOD817D3SD

Fairchild Semiconductor

Transistor Output Optocouplers Phototransistor Output

Data Sheet

0-1: $0.21
1-25: $0.19
25-100: $0.16
100-250: $0.11
