Product Summary

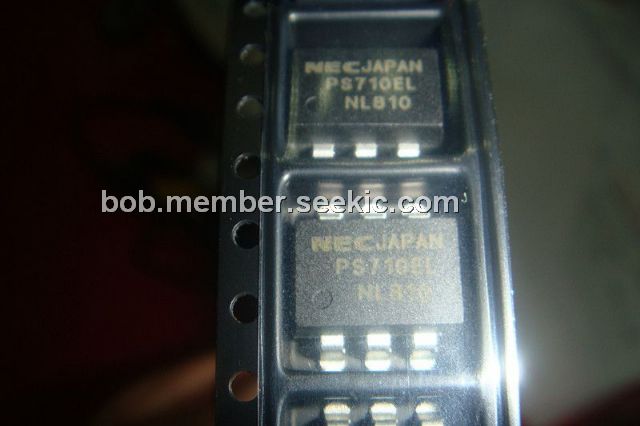

The ps710el-1a-e3-a is a solid state relay containing a GaAs LED on the input side and MOS FETs on the output side. It is suitable for PLC, etc. because of its large continuous load current and low on-state resistance. The ps710el-1a-e3-a has a surface mount type lead. It is used in Measurement equipment, FA equipment.
Parametrics
ps710el-1a-e3-a absolute maximum ratings: (1)Load Voltage VL: 80 V; (2)Continuous Load Current Connection A IL: 2.0 A, Connection B: 3.0 A, Connection C: 4.0 A; (3)Pulse Load Current(AC/DC Connection) ILP: 4.0 A; (4)Power Dissipation PD: 600 mW; (5)Isolation Voltage BV: 1 500 Vr.m.s.; (6)Total Power Dissipation PT: 650 mW; (7)Operating Ambient Temperature TA: -40 to +85 ℃; (8)Storage Temperature Tstg: -40 to +100 ℃.
Features
ps710el-1a-e3-a features: (1)Low on-state resistance (Ron = 0.08Ω TYP.); (2)Large continuous load current (IL = 2.0 A); (3)1 channel type (1 a output); (4)Low LED operating current (IF = 2 mA); (5)Designed for AC/DC switching line changer; (6)Small package (6-pin DIP); (7)Low offset voltage; (8)Ordering number of taping product: PS710EL-1A-E3, E4: 1000 pcs/reel; (9)Pb-Free product; (10)Safety standards; (11)UL approved: File No. E72422.

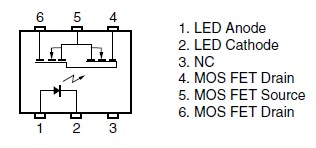

Diagrams
