Product Summary

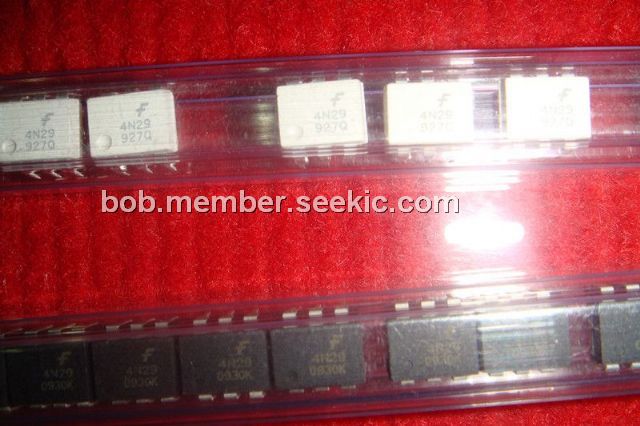

The 4N29M is a general purpose 6-pin photodarlington optocoupler. The 4N29M has a gallium arsenide infrared emitter optically Ccoupled to a silicon planar photodarlington. The applications of the 4N29M include Low power logic circuits, Telecommunications equipment, Portable electronics, Solid state relays, Interfacing coupling systems of different potentials and impedances.

Parametrics

4N29M absolute maximum ratings: (1)Storage Temperature, TSTG: -55 to +150℃; (2)Operating Temperature, TOPR: -55 to +100℃; (3)Lead Solder Temperature, TSOL: 260 for 10 sec℃; (4)Total Device Power Dissipation @ TA = 25℃, PD: 250 mW; Derate above 25℃, PD: 3.3 mW/℃; (5)Continuous Forward Current, IF: 80 mA; (6)Reverse VoltageVR: 3 V; (7)Forward Current - Peak (300μs, 2% Duty Cycle), IF(pk): 3.0 A; (8)LED Power Dissipation @ TA= 25℃, PD: 150 mW; Derate above 25℃, PD: 2.0 mW/℃; (9)Collector-Emitter Breakdown Voltage, BVCEO: 30 V; (10)Collector-Base Breakdown Voltage, BVCBO: 30 V; (11)Emitter-Collector Breakdown Voltage, BVCBO: 5 V; (12)Detector Power Dissipation @ TA= 25℃, PD: 150 mW; Derate above 25℃, IC: 2.0 mW/℃; (13)Continuous Collector Current, IC: 150 mA.

Features

4N29M features: (1)High sensitivity to low input drive current; (2)Meets or exceeds all JEDEC Registered Specifications; (3)UL, C-UL approved; (4)VDE 0884 approval available as a test option-add option .300. (e.g., 4N29.300).

Diagrams

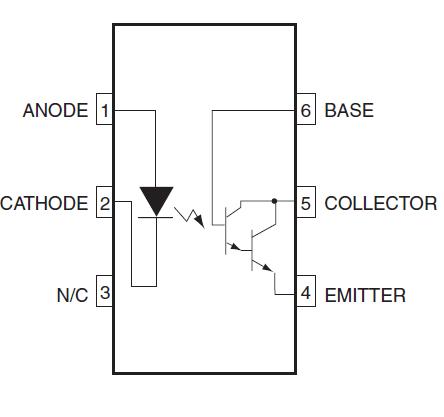

4N29M block diagram
