Product Summary

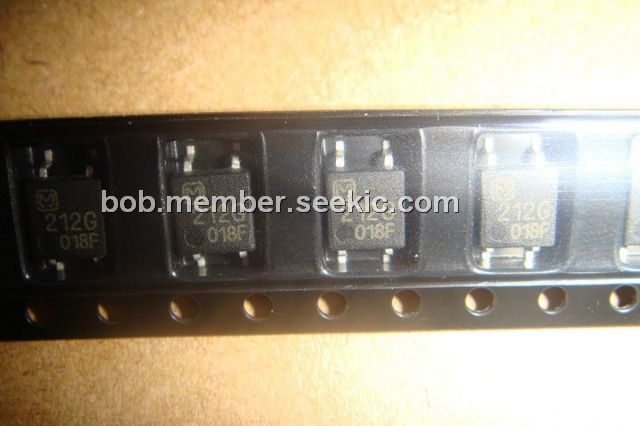

The aqy212gsz is a photoMOS relay. The applications are Measuring instrument market, Security market.(use in I/O for alarm and security devices, etc.)
Parametrics
aqy212gsz absolute maximum ratings: (1)LED forward current IF: 50mA; (2)LED reverse voltage VR: 5V; (3)Peak forward current IFP: 1A; (4)Power dissipation Pin: 75mW; (5)Load voltage (peak AC) VL: 60V; (6)Continuous load current IL: 1.0A; (7)Peak load current Ipeak: 3.0A; (8)Power dissipation Pout: 300mW; (9)Total power dissipation PT: 350mW; (10)I/O isolation voltage Viso: 1,500V AC; (11)Operating temperature Topr: –40℃ to +85℃; (12)Storage temperature Tstg: –40℃ to +100℃.
Features
aqy212gsz features: (1)Greatly increased load current in the same, miniature, 4-pin SO package; (2)Greatly improved specs allow you to use this in place of mercury and mechanical relays.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

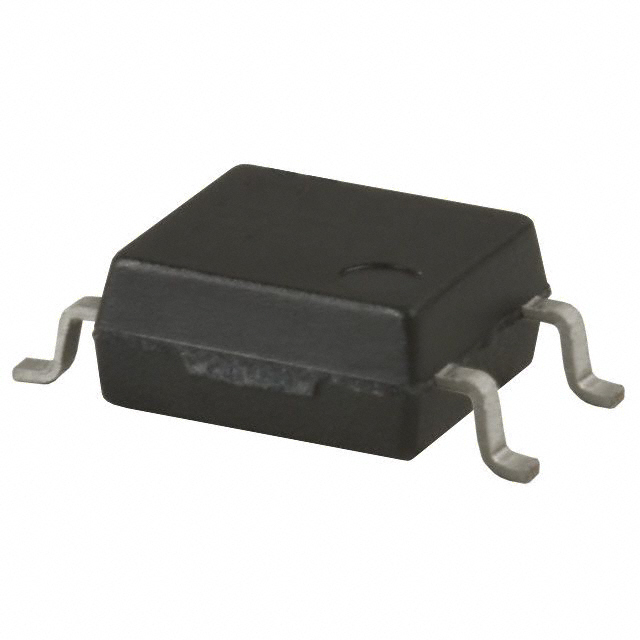

 AQY212GSZ |
Panasonic Electric Works |
Solid State Relays 60V 550mA 1A SOP Form A Norm-Open |
Data Sheet |
|
|
||||||||||||
