Product Summary

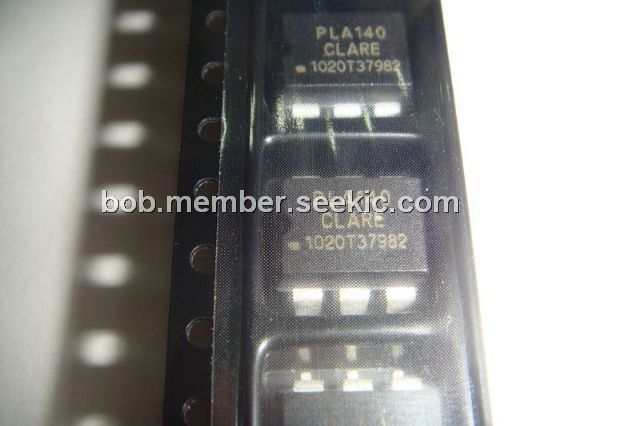

The pla140 is a single pole optoMOS relay. This performance leader combines high peak load voltage capability, high peak load current capability, and very low on-resistance to provide superior performance. The applications of the pla140 include: Instrumentation: Multiplexers, Data Acquisition, Electronic Switching, I/O Subsystems Meters (Watt-Hour, Water, Gas); Medical Equipment—Patient/Equipment Isolation; Security; Aerospace; Industrial Controls; Automotive.

Parametrics

pla140 absolute maximum ratings: (1)Input Power Dissipation: 150 mW; (2)Input Control Current: 50 mA; Peak (10ms): 1 A; (3)Reverse Input Voltage: 5 V; (4)Total Power Dissipation: 800 mW; (5)Isolation Voltage Input to Output 3750 VRMS; (6)Operational Temperature: -40 to +85 ℃; (7)Storage Temperature: -40 to +125 ℃; (8)Soldering Temperature DIP Package: +260 ℃; Surface Mount Package(10 Seconds Max.): +220 ℃.

Features

pla140 features: (1)Small 6 Pin DIP Package; (2)Low Drive Power Requirements (TTL/CMOS Compatible); (3)No Moving Parts; (4)High Reliability; (5)Arc-Free With No Snubbing Circuits; (6)3750VRMS Input/Output Isolation; (7)FCC Compatible; (8)VDE Compatible; (9)No EMI/RFI Generation; (10)Machine Insertable, Wave Solderable; (11)Surface Mount and Tape & Reel Versions Available.

Diagrams

pla140 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PLA140L
PLA140L

Clare

Solid State Relays Single Pole

Data Sheet

Negotiable
PLA140LSTR
PLA140LSTR

Clare

Solid State Relays Single Pole

Data Sheet

Negotiable
PLA140S
PLA140S

Clare

Solid State Relays SPST-NO 6PIN DIP

Data Sheet

Negotiable
PLA140STR
PLA140STR

Clare

Solid State Relays Single Pole

Data Sheet

Negotiable
PLA140LS
PLA140LS

Clare

Solid State Relays Single Pole

Data Sheet

Negotiable
PLA140
PLA140

Clare

Solid State Relays SPST-NO 6PIN DIP

Data Sheet

Negotiable
