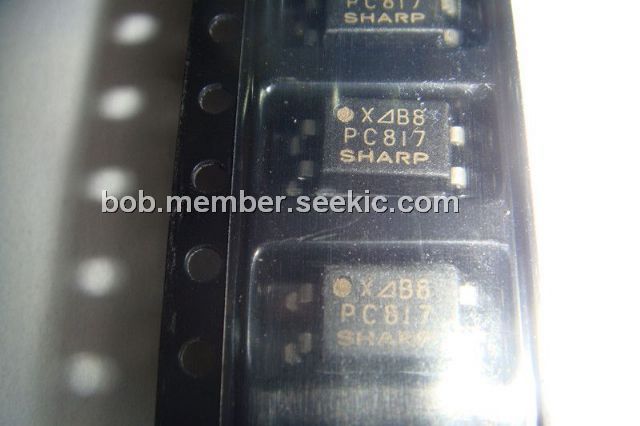

Product Summary

The pc81710 is a Low Input Current Type Photocoupler. It is used in Programmable controllers, Facsimiles, Telephones.

Parametrics

pc81710 absolute maximum ratings: (1)Collector-emitter voltage VCEO: 70V; (2)Emitter-collector voltage VECO: 6V; (3)Collector current IC: 50mA; (4)Collector power dissipation PC: 150mW; (5)Total power dissipation Ptot: 170mW; (6)Operating temperature Topr: -30 to +100℃; (7)Storage temperature Tstg: -55 to +125℃; (8)Isolation voltage Viso: 5kVrms; (9)Soldering temperature Tsol: 260℃.

Features

pc81710 features: (1)Low input current type(IF=0.5mA); (2)High resistance to noise due to high common rejection voltage (CMR:MIN. 10kV/μs); (3)Compact dual-in line package; (4)Isolation voltage(Viso: 5kVrms); (5)Recognized by UL, file No. E64380.

Diagrams

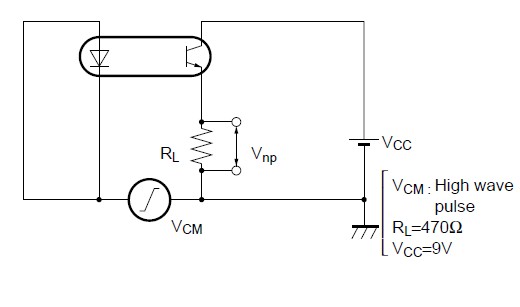

pc81710 diagram
