Product Summary
The LC03-6 is a transient voltage suppressor. It is designed to protect components which are connected to high speed telecommunication lines from voltage surges caused by lightning, electrostatic discharge (ESD), cable discharge events (CDE), and electrical fast transients (EFT). It is available in SO-8 surface mount package.
Parametrics
LC03-6 absolute maximum ratings: (1)Peak Pulse Power (tp = 8/20μs), P pk: 2000 Watts; (2)Peak Pulse Current (tp = 8/20μs), I PP: 100 A; (3)Lead Soldering Temperature, TL: 260 (10 sec.) ℃; (4)Operating Temperature, TJ: -55 to +125 ℃; (5)Storage Temperature, T STG: -55 to +150 ℃.
Features
LC03-6 features: (1)2000 watts peak pulse power (tp = 8/20μs); (2)Protects two lines in common and differential mode; (3)Low capacitance for high-speed interfaces; (4)Low clamping and operating voltage; (5)Integrated structure saves board space and increases reliability; (6)Solid-state silicon avalanche technology.

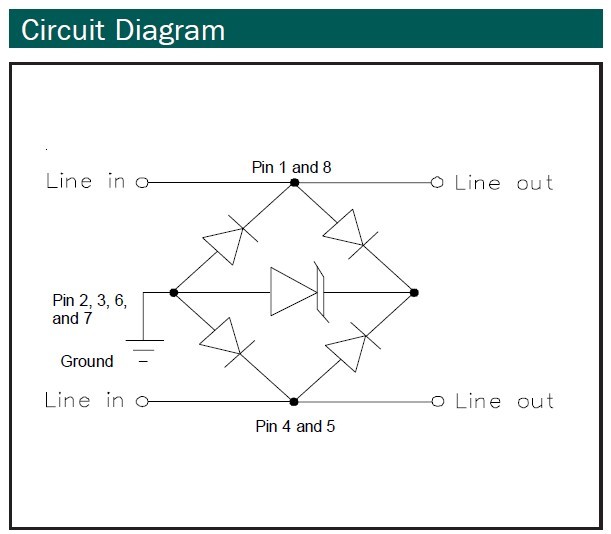

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LC03-6R2 |
ON Semiconductor |
TVS Diode Arrays 6.8V 2kW 12pf 2 Line |
Data Sheet |
Negotiable |
|
||||||||||||
|
LC03-6R2G |
ON Semiconductor |
TVS Diode Arrays LO CAPACITANCE SURF MOUNT TVS |
Data Sheet |
|
|
||||||||||||
 |
LC03-6.TET |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
LC03-6.TBT |
|
IC TVS 6V HI-SPD DATA INTR 8SOIC |
Data Sheet |
|
|
||||||||||||
