Product Summary

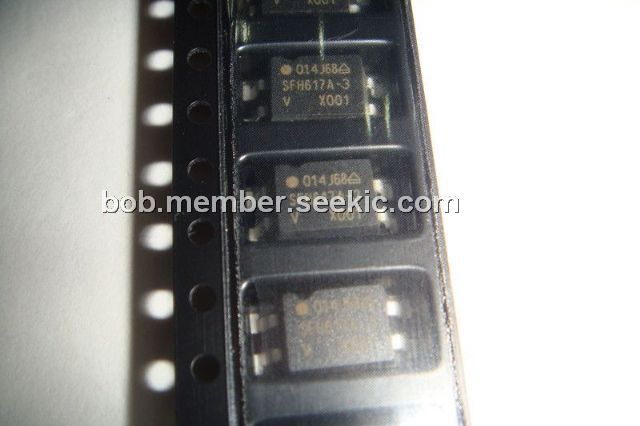

The sfh617a-3x001 is a High Reliability Optocoupler. The sfh617a-3x001 features a high current transfer ratio, low coupling capacitance and high isolation voltage.These couplers have a GaAs infrared diode emitter, which is optically coupled to a silicon planar phototransistor detector, and sfh617a-3x001 is incorporated in a plastic DIP-4 package.

Parametrics

sfh617a-3x001 absolute maximum ratings: (1)Reverse voltage:VR 6.0 V; (2)DC Forward current:IF 60 mA; (3)Surge forward current:t ≤ 10 μs IFSM 2.5 A; (4)Power dissipation:Pdiss 100 mW; (5)Collector-emitter voltage:VCE 70 V; (6)Emitter-collector voltage:VEC 7.0 V; (7)Collector current:IC 50 mA t ≤ 1.0 ms IC 100 mA; (8)Power dissipation:Pdiss 150 mW.

Features

sfh617a-3x001 features: (1)Good CTR Linearity Depending on Forward Current; (2)Isolation Test Voltage, 5300 VRMS; (3)High Collector-Emitter Voltage, VCEO = 70 V; (4)Low Saturation Voltage; (5)Fast Switching Times; (6)Low CTR Degradation; (7)Temperature Stable; (8)Low Coupling Capacitance; (9)End-Stackable, .100 " (2.54 mm) Spacing; (10)High Common-Mode Interference Immunity; (11)Lead-free component; (12)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

Diagrams

sfh617a-3x001 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SFH617A-3X001
SFH617A-3X001

Vishay Semiconductors

Transistor Output Optocouplers Phototransistor Out Single CTR>100-200%

Data Sheet

0-1: $0.34
1-10: $0.29
10-50: $0.24
50-100: $0.23
