Product Summary

The pvu414s is a Power MOSFET Photovoltaic Relay. It is a singlepole, normally open solid-state relay that can replace electromechanical relays in many applications. The output switch is controlled by radiation from a GaAlAs light emitting diode (LED) which is optically isolated from the photovoltaic generator. The pvu414s is ideally suited for instrumentation, multiplexing, scanning and data acquisition applications. It offers high operating speed, low thermal offset (EMF) voltage, low and stable on-state resistance and high off-state resistance. The applications of the pvu414s include: Multiplexing, Scanning, Multichannel Sampling, Data Acquisition, Signal Level Switching, Instrumentation and Measurement.

Parametrics

pvu414s absolute maximum ratings: (1)Minimum Control Current: 3.0 mA; (2)Maximum Control Current for Off-State Resistance @TA=+25℃: 0.4 mA; (3)Control Current Range (Caution: current limit input LED): 3.0 to 25 mA; (4)Maximum Reverse Voltage: 6.0 V.

Features

pvu414s features: (1)HEXFET Power MOSFET output; (2)Bounce-free operation; (3)High operating speed; (4)High off-state resistance; (5)0.2μV thermal offset voltage; (6)4,000 VRMS I/O isolation; (7)Linear AC/DC operation; (8)Solid-State Reliability; (9)UL recognized; (10)ESD Tolerance: 4000V Human Body Model, 500V Machine Model.

Diagrams

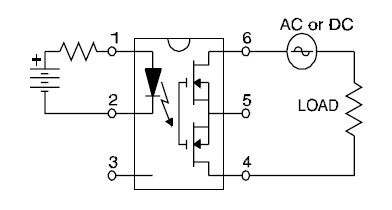

pvu414s diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PVU414S
PVU414S
International Rectifier
IC RELAY PHOTOVO 400V 140MA 6SMD
Data Sheet
1-150: $2.19
PVU414SPBF
PVU414SPBF
International Rectifier
Solid State Relays
Data Sheet
0-1: $4.03
1-25: $2.75
25-100: $2.05
100-250: $1.96
PVU414S-TPBF
PVU414S-TPBF
International Rectifier
Solid State Relays 400V 1 Form A Photo Voltaic Relay
Data Sheet
0-1: $3.83
1-25: $2.80
25-100: $2.22
100-250: $2.02
PVU414S-T
PVU414S-T
International Rectifier
IC RELAY PHOTOVO 400V 140MA 6SMD
Data Sheet
1-750: $2.02
