Product Summary
The brt23f is an Optocoupler. It consists of AC switch optocouplers with zero voltage detectors with two electrically insulated lateral power ICs which integrate a thyrister system, a photo detector and noise suppression at the output and an IR GaAs diode input. The brt23f isolates low-voltage logic from 120, 230 and 380 VAC lines to control resistive, inductive or capacitive loads including motors, solenoids, high current thyristers or TRIAC and relays. The applications of the brt23f include: Industrial controls, Office equipment, Consumer appliances.
Parametrics
brt23f absolute maximum ratings: (1)Reverse voltage VR: 6.0 V; (2)Forward current IF: 60 mA; (3)Surge current IFSM: 2.5 A; (4)Power dissipation Pdiss: 100 mW; (5)Derate from 25 ℃: 1.33 mW/℃.
Features
brt23f features: (1)High Input Sensitivity IFT = 1.0 mA; (2)ITRMS = 300 mA; (3)High Static dv/dt 10,000 V/μs; (4)Electrically Insulated between Input and Output circuit; (5)Microcomputer compatible; (6)Available Surface Mount and on on tape and reel; (7)Zero Voltage Crossing detector; (8)UL File E52744 System Code J; (9)Lead-free component; (10)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

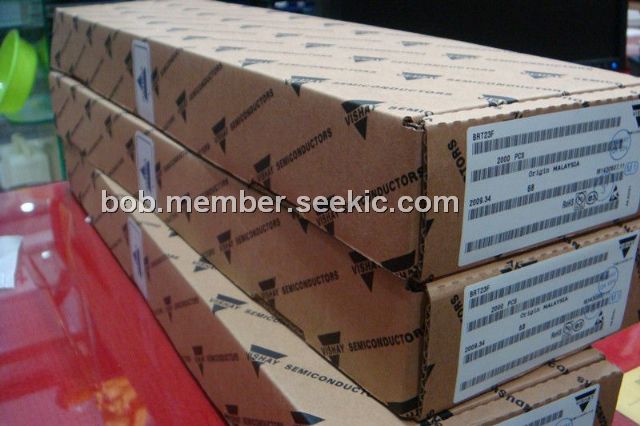

 BRT23F |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
BRT23F-X006 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
BRT23F-X007 |
Other |
|
Data Sheet |
Negotiable |
|
||||
