Product Summary
The moc3032sr2m is a 6-Pin DIP Zero-Cross Optoisolator. It consists of a AlGaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver. The moc3032sr2m is designed for use with a triac in the interface of logic systems to equipment powered from 115 VAC lines, such as teletypewriters, CRTs, solid-state relays, industrial controls, printers, motors, solenoids and consumer appliances, etc. The applications of the moc3032sr2m include: Solenoid/valve controls, Lighting controls, Static power switches, AC motor drives, Temperature controls, E.M. contactors, AC motor starters, Solid state relays.
Parametrics
moc3032sr2m absolute maxing ratings: (1)Storage Temperature TSTG: -40 to +150 ℃; (2)Operating Temperature TOPR: -40 to +85 ℃; (3)Lead Solder Temperature TSOL: 260 for 10 sec ℃; (4)Junction Temperature Range TJ: -40 to +100 ℃; (5)Isolation Surge Voltage(peak AC voltage, 60Hz, 1 sec duration)VISO: 7500 Vac(pk); (6)Total Device Power Dissipation @ 25℃ PD: 250 mW; Derate above 25℃: 2.94 mW/℃; (7)Continuous Forward Current IF: 60 mA; (8)Reverse Voltage VR: 6 V.
Features
moc3032sr2m features: (1)Simplifies logic control of 115 VAC power; (2)Zero voltage crossing; (3)dv/dt of 2000 V/μs typical, 1000 V/μs guaranteed; (4)VDE recognized (File # 94766), ordering option V(e.g., MOC3043VM).

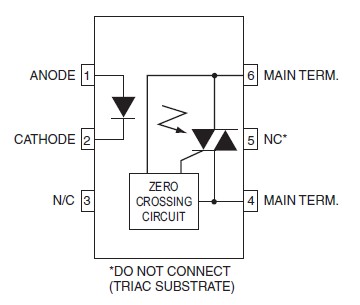

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MOC3032SR2M |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin250V Optocoupler Zero Cross Triac Dr |
Data Sheet |
|
|
||||||||||||
