Product Summary

The max352cpe is a precision, quad, single-pole single-throw (SPST) analog switch. It offers low on resistance (less than 35Ω), guaranteed to match within 2Ω between channels and to remain flat over the analog signal range (Δ3Ω max). The max352cpe also offers low leakage (less than 250pA at +25℃ and less than 6nA at +85℃) and fast switching (turn-on time less than 175ns and turn-off time less than 145ns). The applications of the max352cpe are Sample-and-Hold Circuits, Military Radios, Guidance and Control Systems, Communications Systems, Heads-Up Displays, Battery-Operated Systems, Test Equipment, PBX, PABX.

Parametrics

max352cpe absolute maximum ratings: (1)Voltage Referenced to V-: V+:44V, GND:25V, VL:(GND - 0.3V) to (V+ + 0.3V); (2)Digital Inputs, VCOM, VNC, VNO:(V- - 2V) to (V+ + 2V) or 30mA(whichever occurs first) Current (any terminal):30mA; (3)Peak Current COM_, NO_, NC_(pulsed at 1ms, 10% duty cycle max):100mA; (4)ESD per Method 3015.7:>2000V; (5)Operating Temperature Ranges:-55℃ to +125℃; (6)Storage Temperature Range:-65℃ to +150℃; (7)Lead Temperature (soldering, 10sec):+300℃.

Features

max352cpe features: (1)Low On Resistance < 22Ω Typical (35Ω Max); (2)Guaranteed Matched On Resistance Between Channels < 2Ω; (3)Guaranteed Flat On Resistance Over Analog Signal Range Δ3Ω Max; (4)Guaranteed Charge Injection < 10pC; (5)Guaranteed Off-Channel Leakage < 6nA at +85℃; (6)ESD Guaranteed > 2000V per Method 3015.7; (7)Single-Supply Operation (+10V to +30V); (8)Bipolar-Supply Operation (±4.5V to ±20V); (9)TTL-/CMOS-Logic Compatibility; (10)Rail-to-Rail Analog Signal Handling Capability.

Diagrams

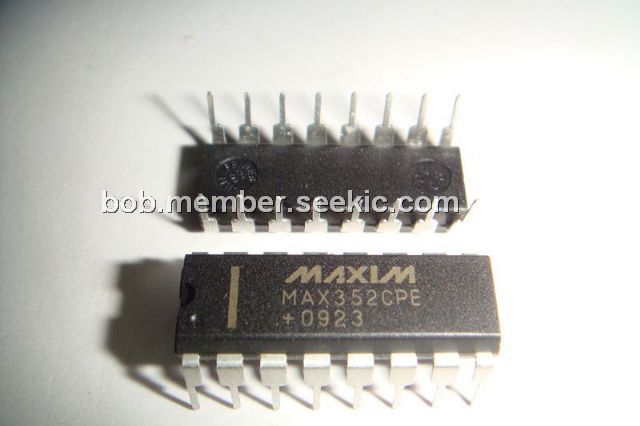

max352cpe diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX352CPE
MAX352CPE
Maxim Integrated Products
Analog Switch ICs
Data Sheet
Negotiable
MAX352CPE+
MAX352CPE+
Maxim Integrated Products
Analog Switch ICs Precision Quad SPST
Data Sheet
0-1: $4.61
1-25: $3.08
25-50: $2.27
50-100: $2.23
