Product Summary

The lca710str is a 60V, 1A, 0.5Ω 1-Form-A relay. It features the highest peak load current capability available in an OptoMOS relay. The applications of the lca710str include: Telecommunications: Telecom Switching, Tip/Ring Circuits, Modem Switching (Laptop, Notebook, Pocket Size), Hookswitch, Dial Pulsing, Ground Start, Ringer Injection; Instrumentation: Multiplexers, Data Acquisition, Electronic Switching, I/O Subsystems, Meters (Watt-Hour, Water, Gas); Medical Equipment—Patient/Equipment Isolation; Security; Aerospace; Industrial Controls.

Parametrics

lca710str absolute maximum ratings: (1)Input Power Dissipation: 150 mW max; (2)Input Control Current: 50 mA max; Peak (10ms): 1 A max; (3)Reverse Input Voltage: 5 V max; (4)Total Power Dissipation: 800 mW max; (5)Isolation Voltage Input to Output: 3750 VRMS min; (6)Operational Temperature :-40 to +85 ℃; (7)Storage Temperature: -40 to +125 ℃; (8)Soldering Temperature: DIP Package: +260 ℃ max; Surface Mount Package(10 Seconds Max.): +220 ℃ max.

Features

lca710str features: (1)Small 6 Pin DIP Package; (2)Low Drive Power Requirements (TTL/CMOS Compatible); (3)No Moving Parts; (4)High Reliability; (5)Arc-Free With No Snubbing Circuits; (6)3750VRMS Input/Output Isolation; (7)FCC Compatible; (8)VDE Compatible; (9)No EMI/RFI Generation; (10)Machine Insertable, Wave Solderable; (11)Surface Mount and Tape & Reel Versions Available.

Diagrams

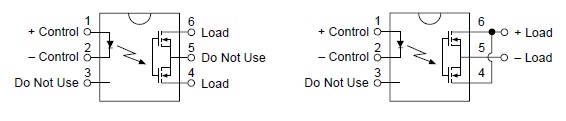

lca710str diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

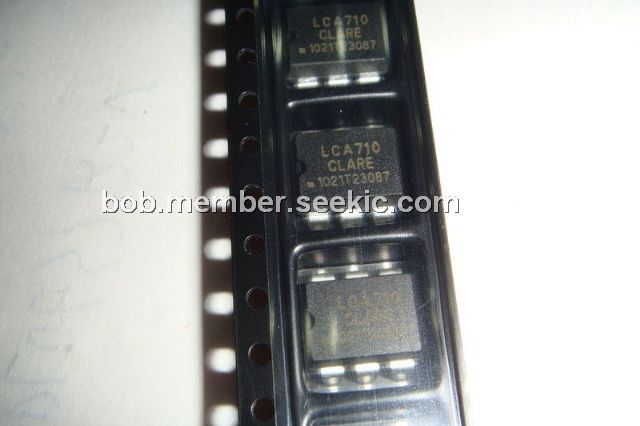

LCA710STR
LCA710STR
Clare
Solid State Relays 1-Form-A solid state relay with optically coupled MOSFET
Data Sheet
Negotiable
