Product Summary

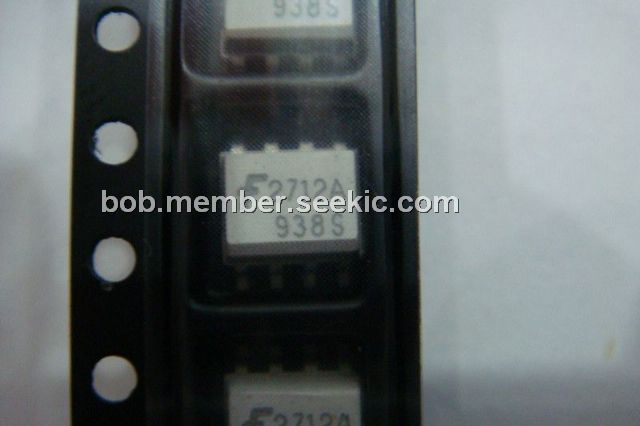

The fod2712ar2v is an optically isolated error amplifier. It consists of the popular RC431A precision programmable shunt reference and an optocoupler. The optocoupler is a gallium arsenide (GaAs) light emitting diode optically coupled to a silicon phototransistor. The fod2712ar2v is primarily intended for use as the error amplifier/reference voltage/optocoupler function in isolated ac to dc power supplies and dc/dc converters. The applications of the fod2712ar2v include: Power system for workstations, Telecom central office supply, Telecom bricks.

Parametrics

fod2712ar2v absolute maxing ratings: (1)Storage Temperature TSTG: -55 to +125 ℃; (2)Operating Temperature TOPR: -40 to +85 ℃; (3)Input Voltage VLED: 13.2 V; (4)Input DC Current ILED: 20 mA; (5)Collector-Emitter Voltage VCEO: 30 V; (6)Emitter-Collector Voltage VECO: 7 V; (7)Collector Current IC: 50 mA; (8)Input Power Dissipation PD1: 145 mW; (9)Transistor Power Dissipation PD2: 85 mW; (10)Total Power Dissipation PD3: 145 mW.

Features

fod2712ar2v features: (1)Optocoupler, precision reference and error amplifier in single package; (2)1.240V ±1% reference; (3)CTR 100% to 200%; (4)2,500V RMS isolation; (5)VDE approval 136616; (6)BSI approval 8661 and 8662; (7)UL approval E90700; (8)CSA approval 1113643.

Diagrams

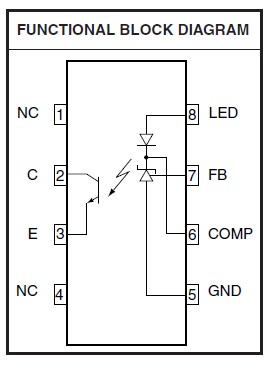

fod2712ar2v digram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FOD2712AR2V
FOD2712AR2V

Fairchild Semiconductor

Transistor Output Optocouplers OPTICALLY ISOLATED ERROR AMPLIFIER

Data Sheet

0-1670: $0.31
1670-2000: $0.29
2000-2500: $0.29
2500-5000: $0.27
