Product Summary
The cpc1008ntr is a miniature low voltage, low on resistance 1-Form-A solid state relay in a 4 pin SOP package. The relay uses optically coupled MOSFET technology to pro-vide 1500V of input to utput isolation. The efficient MOS-FET switches and photovoltaic die use Clare’s patented OptoMOS architecture. The optically-coupled input is controlled by a highly efficient GaAIAs infrared LED. The cpc1008ntr uses Clare’s state of the art double molded vertical construction packaging to produce the world’s smallest relay. The cpc1008ntr is ideal for replacing larger less reliable reed and electromechanical relays.
Parametrics
cpc1008ntr absolute maximum ratings: (1)Input Power Dissipation: 70 mW; (2)Input Control Current: 50 mA; Peak (10ms): 1 A; (3)Reverse Input Voltage: 5 V; (4)Total Power Dissipation: 400 mW; (5)Capacitance, Input to Output: 1 pF; (6)Isolation Voltage, Input to Output: 1500 VRMS; (7)Operational Temperature: -40 to +85℃; (8)Storage Temperature: -40 to +125℃; (9)Soldering Temperature (10 Seconds Max.): +220℃.
Features
cpc1008ntr features: (1)Small 4 Pin SOP Package; (2)Low Drive Power Requirements (TTL/CMOS Compatible); (3)No Moving Parts; (4)High Reliability; (5)Arc-Free With No Snubbing Circuits; (6)1500VRMS Input/Output Isolation; (7)FCC Compatible; (8)No EMI/RFI Generation; (9)Machine Insertable, Wave Solderable; (10)Tape and Reel Version Available.

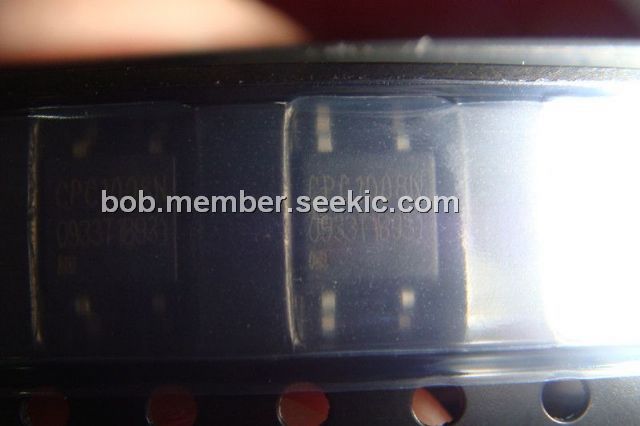

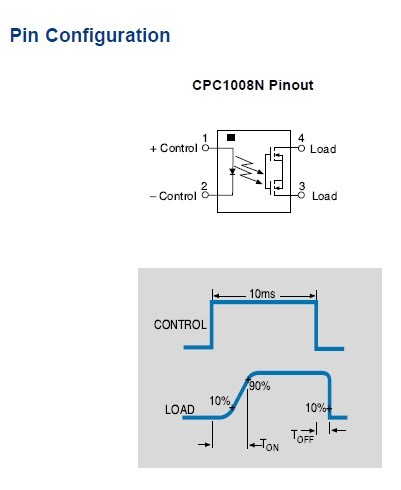

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
CPC1008NTR |
Clare |
Solid State Relays 1-Form-A solid state relay - 4-Pin |
Data Sheet |
Negotiable |
|
|||||
