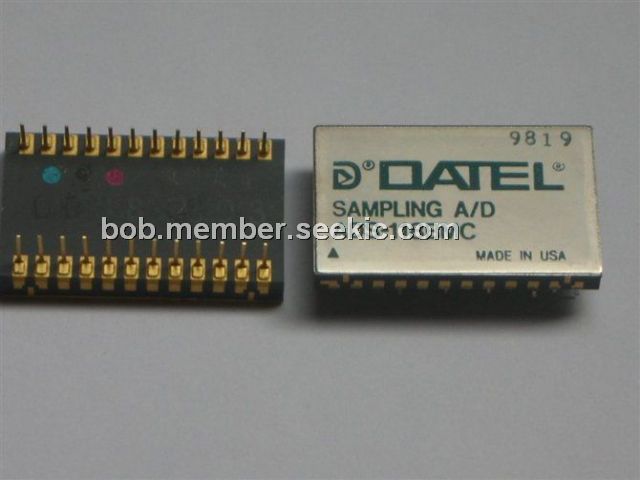

Product Summary

The ads-118bmc is a 12-bit, 5MHz, sampling A/D converter packaged in space-saving 24-pin DDIP’s. The ads-118bmc offers an input range of ±1V and has three-state outputs. The ads-118bmc has an input range of ±1.25V and features direct adjustment of offset error. Application areas of the ads-118bmc radar, transient signal analysis, process control, medical/graphic imaging, and FFT spectrum analysis.

Parametrics

ads-118bmc absolute maximum ratings: (1)+5V Supply (Pins 13, 21): 0 to +6 Volts; (2)–5V Supply (Pin 20): 0 to –6 Volts; (3)Digital Input (Pin 16, 17): –0.3 to +VDD +0.3 Volts; (4)Analog Input (Pin 19): ±5 Volts; (5)Lead Temperature (10 seconds): +300 °C.

Features

ads-118bmc features: (1)12-bit resolution; (2)5MHz minimum sampling rate; (3)Functionally complete; (4)Small 24-pin DDIP; (5)Requires only ±5V supplies; (6)Low-power, 1.8 Watts; (7)Outstanding dynamic performance; (8)No missing codes over full military temperature range; (9)Edge triggered, no pipeline delay; (10)Ideal for both time and frequency-domain applications.

Diagrams

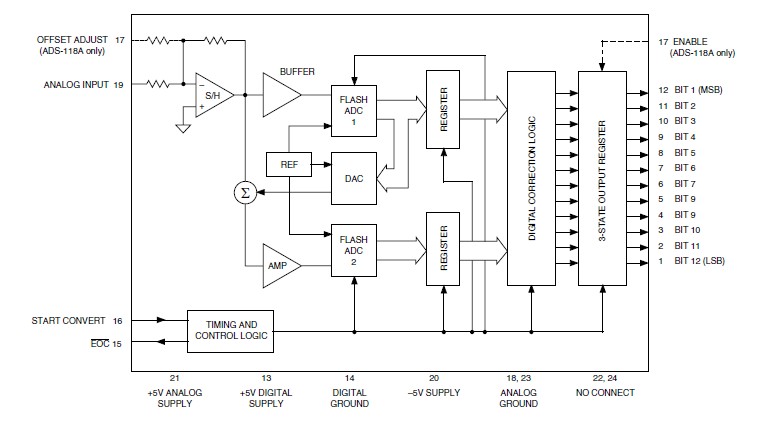

ads-118bmc block diagram
