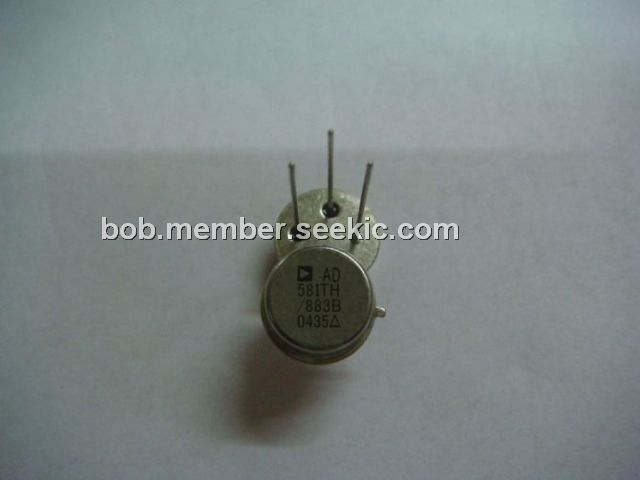

ad581th/883b

3-pin, temperature compensated, monolithic, can, 750 μA, 10 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $100.00~300.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $100.00~300.00

PartNumber:: ad581th/883b

Brand:: Analog Devices - ADI | Pack: CAN | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Luisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-23

From Other Seller

Part Number:ad581th/883b
US $100.00 - 300.00
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ad581th/883b is a 3-pin, temperature compensated, monolithic, band gap voltage reference that provides a precise 10.00 V output from an unregulated input level ranging from 12 V to 30 V. The ad581th/883b is recommended for use as a reference for 8-, 10- or 12-bit digital-to-analog converters (DACs) that require an external precision reference. Laser wafer trimming (LWT) is used to trim both the initial error at +25°C as well as the temperature coefficient, resulting in high precision performance previously available only in expen-sive hybrids or oven regulated modules. The 5 mV initial error tolerance and 5 ppm/°C guaranteed temperature coefficient of the ad581th/883b is available in a monolithic voltage reference.

Parametrics

ad581th/883b absolute maximum ratings: (1)Input Voltage: 40 V; (2)Power Dissipation @ +25°C: 600 mW; (3)Operating Junction Temperature Range: -55°C to +150°C; (4)Lead Temperature (Soldering 10 sec): +300°C; (5)Thermal Resistance; (6)Junction-to-Ambient: 150°C/W.

Features

ad581th/883b features: (1)Laser trimmed to high accuracy; (2)10.000 V ±5 mV (L and U models); (3)Trimmed temperature coefficient; (4)5 ppm/°C maximum, 0°C to 70°C (L model); (5)10 ppm/°C maximum, .55°C to +125°C (U model); (6)Excellent long-term stability; (7)25 ppm/1000 hr (noncumulative); (8).10 V reference capability; (9)Low quiescent current: 1.0 mA maximum; (10)10 mA current output capability; (11)3-pin TO-5 package; (12)MIL-STD-883 compliant versions available.
