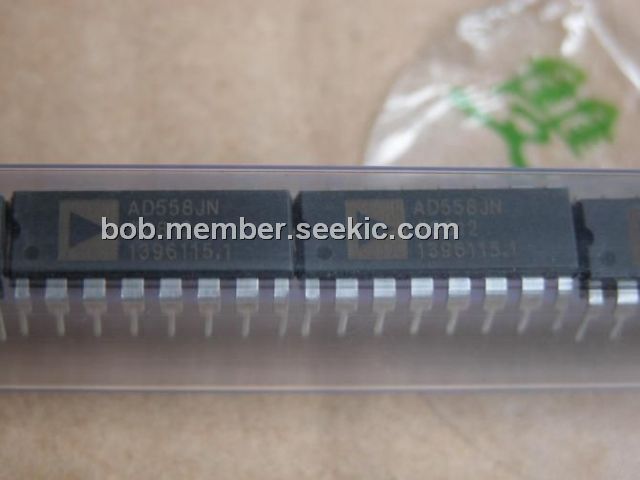

Product Summary

The ad558jnz is a complete voltage-output 8-bit digital-to-analog converter, Application of the ad558jnz including output amplifier, full microprocessor interface and precision voltage reference on a single monolithic chip. No external components or trims are required to interface, with full accuracy, an 8-bit data bus to an analog system.

Parametrics

ad558jnz absolute maximum ratings: (1)VCC to Ground: 0 V to +18 V; (2)Digital Inputs (Pins 1–10)：0 V to +7.0 V; (3)VOUT: Indefinite Short to Ground; (4)Momentary Short to VCC; (5)Power Dissipation: 450 mW; (6)Storage Temperature Range; (7)N/P (Plastic) Packages: –25°C to +100°C; (8)D (Ceramic) Package: –55°C to +150°C; (9)Lead Temperature (soldering, 10 sec): +300°C; (10)Thermal Resistance; (11)Junction to Ambient/Junction to Case; (12)D (Ceramic) Packag: 100°C/W/30°C/W; (13)N/P (Plastic) Packages: 140°C/W/55°C/W.

Features

ad558jnz features: (1)Complete 8-Bit DAC; (2)Voltage Output–2 Calibrated Ranges; (3)Internal Precision Bandgap Reference; (4)Single-Supply Operation: +5 V to +15 V; (5)Full Microprocessor Interface; (6)Fast: 1 ms Voltage Settling to 61/2 LSB; (7)Low Power: 75 mW; (8)No User Trims; (9)Guaranteed Monotonic Over Temperature; (10)All Errors Specified TMIN to TMAX; (11)Small 16-Pin DIP and 20-Pin PLCC Packages; (12)Single Laser-Wafer-Trimmed Chip for Hybrids; (13)Low Cost; (14)MIL-STD-883 Compliant Versions Available.

Diagrams

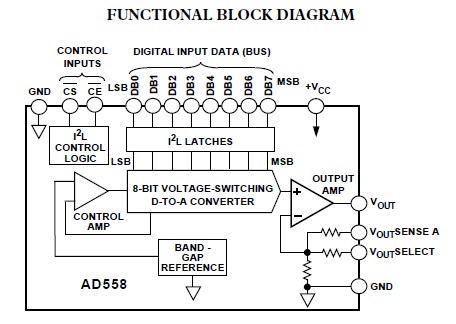

ad558jnz block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD558JNZ
AD558JNZ

IC DAC 8BIT V-OUT 16-DIP
Data Sheet
0-1: $9.42
1-25: $7.92
25-100: $7.28
100-250: $6.64
250-500: $6.21
500-1000: $5.71
