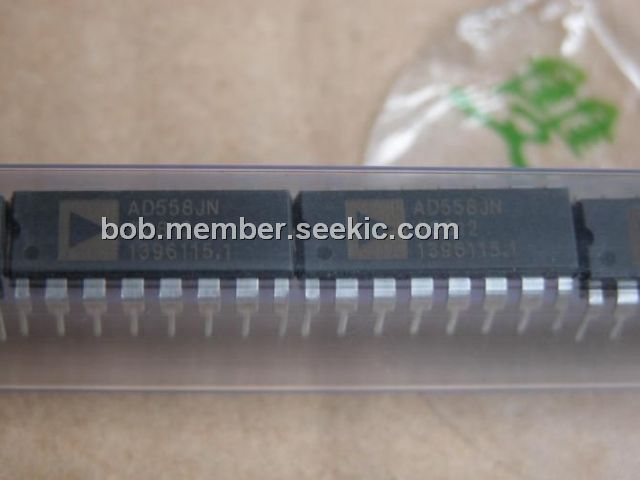

ad558jn

8-Bit DAC, 16-CDIP2, 18V, 5mA, Analog Devices, dip

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $8.00~10.00

PartNumber:: ad558jn

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Luisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-23

From Other Seller

Part Number:ad558jn
US $8.00 - 10.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

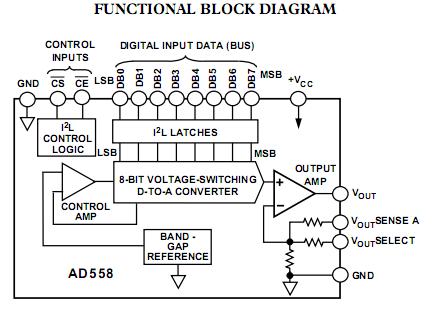

The ad558jn is a complete voltage-output 8-bit digital-to-analog converter. The ad558jn is including output amplifier, full microprocessor interface and precision voltage reference on a single monolithic chip. No external components or trims are required to interface, with full accuracy, an 8-bit data bus to an analog system. The performance and versatility of the ad558jn is a result of several recently-developed monolithic bipolar technologies. The complete microprocessor interface and control logic is implemented with integrated injection logic (I2L), the ad558jn is an extremely dense and low power logic structure that is process-compatible with linear bipolar fabrication.

Parametrics

ad558jn absolute maximum ratings: (1)VCC to Ground: 0 V to +18 V; (2)Digital Inputs: 0 V to +7.0 V; (3)VOUT: Indefinite Short to Ground Momentary Short to VCC; (4)Power Dissipation: 450 mW; (5)Storage Temperature Range, N/P (Plastic) Packages: -25℃ to +100℃; (Ceramic) Package: -55℃ to +150℃; (6)Lead Temperature (soldering, 10 sec): +300℃; (7)Thermal Resistance Junction to Ambient/Junction to Case, D (Ceramic) Package: 100℃/W/30℃/W; N/P (Plastic) Packages: 140℃/W/55℃/W.

Features

ad558jn features: (1)Complete 8-Bit DAC; (2)Voltage Output–2 Calibrated Ranges; (3)Internal Precision Bandgap Reference; (4)Single-Supply Operation: +5 V to +15 V; (5)Full Microprocessor Interface; (6)Fast: 1 ms Voltage Settling to 61/2 LSB; (7)Low Power: 75 mW; (8)No User Trims; (9)Guaranteed Monotonic Over Temperature; (10)All Errors Specified TMIN to TMAX; (11)Small 16-Pin DIP and 20-Pin PLCC Packages; (12)Single Laser-Wafer-Trimmed Chip for Hybrids; (13)Low Cost; (14)MIL-STD-883 Compliant Versions Available.
