ad536ajq

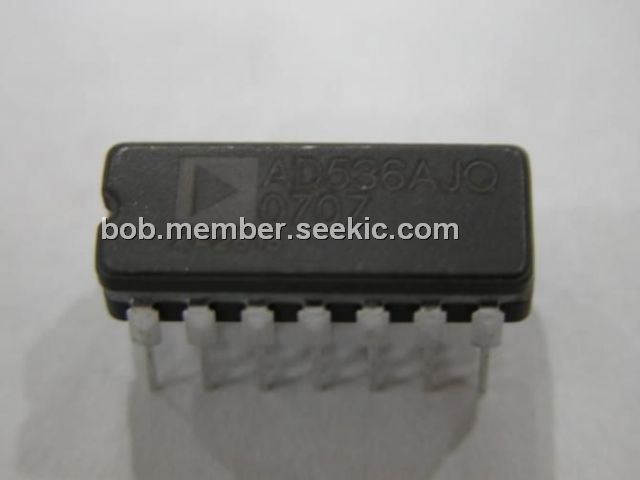

monolithic integrated circuit, rms-to-dc conversion, cdip, 1%, 100 mV

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $8.00~10.00

PartNumber:: ad536ajq

Brand:: Analog Devices - ADI | Pack: CDIP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Luisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-23

From Other Seller

Part Number:ad536ajq
US $8.00 - 10.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ad536ajq is a complete monolithic integrated circuit which performs true rms-to-dc conversion. The ad536ajq offers performance which is comparable or superior to that of hybrid or modular units costing much more. The ad536ajq directly computes the true rms value of any complex input waveform containing ac and dccomponents. The ad536ajq has a crest factor compensation scheme which allows measurements with 1% error at crest factors up to 7. The wide bandwidth of the device extends the measurement capability to 300 kHz with 3 dB error for signal levels above 100 mV.

Parametrics

ad536ajq absolute maximum ratings: (1)Dual Supply : ±18 V; (2)Single Supply : +36 V; (3)Internal Power Dissipation2: 500 mW; (4)Maximum Input Voltage :±25 V Peak; (5)Buffer Maximum Input Voltage : ±VS; (6)Maximum Input Voltage : ±25 V Peak; (7)Storage Temperature Range：–55°C to +150°C; (8)Operating Temperature Range; (9)AD536AJ/K : 0°C to +70°C; (10)AD536AS : –55°C to +125°C; (11)Lead Temperature Range; (12)(Soldering 60 sec) : +300°C; (13)ESD Rating : 1000 V.

Features

ad536ajq features: (1)True RMS-to-DC Conversion; (2)Laser-Trimmed to High Accuracy; (3)0.2% Max Error (AD536AK); (4)0.5% Max Error (AD536AJ); (5)Wide Response Capability:; (6)Computes RMS of AC and DC Signals; (7)450 kHz Bandwidth: V rms > 100 mV; (8)2 MHz Bandwidth: V rms > 1 V; (9)Signal Crest Factor of 7 for 1% Error; (10)dB Output with 60 dB Range; (11)Low Power: 1.2 mA Quiescent Current; (12)Single or Dual Supply Operation; (13)Monolithic Integrated Circuit; (14)–55°Cto +125°C Operation (AD536AS).
