Product Summary

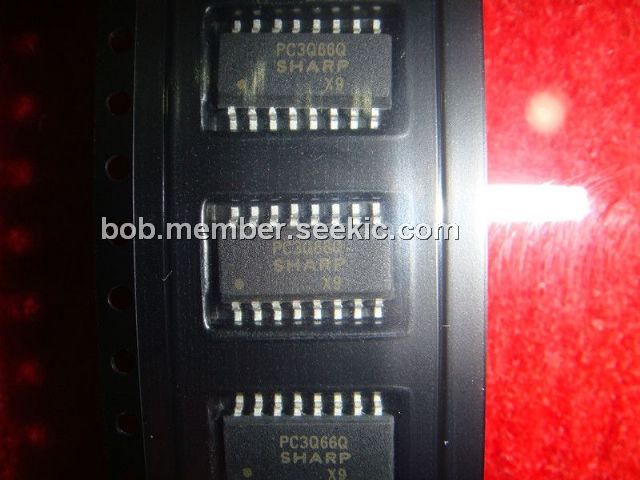

The PC3Q66Q is a High Collector-Emitter Voltage Type Half Pitch Photocoupler. It is used in Programmable controllers.
Parametrics
PC3Q66Q absolute maximum ratings: (1)Forward current IF: 50 mA; (2)Peak forward current IFM: 1 A; (3)Reverse voltage VR: 6 V; (4)Power dissipation P: 70 mW; (5)Collector-emitter voltage VCEO: 80 V; (6)Emitter-collector voltage VECO: 6 V; (7)Collector current IC: 50 mA; (8)Collector power dissipation PC: 150 mW; (9)Total power dissipation Ptot: 170 mW; (10)Operating temperature Topr: - 30 to + 100 ℃; (11)Storage temperature Tstg: - 40 to + 125 ℃; (12)Soldering temperature Tsol: 260 ℃.
Features
PC3Q66Q features: (1)High collector-emitter voltage; (2)Half pitch type ( lead pitch: 1.27mm ); (3)Isolation voltage between input and output; (4)Applicable to infrared ray reflow; (5)High reliability.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PC3Q66Q |
Other |
|
Data Sheet |
Negotiable |
|
||||
