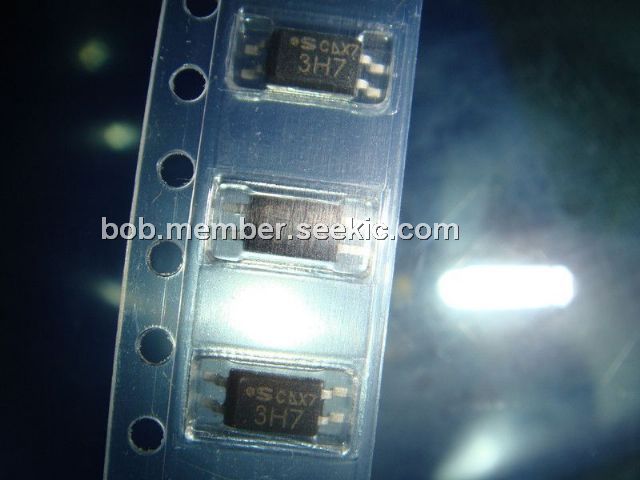

The PC3H7D is a General Purpose Half Pitch Photocoupler. It is used in Programmable controllers.
Parametrics
PC3H7D absolute maximum ratings: (1)Forward current IF: 50 mA; (2)Peak forward current IFM: 1 A; (3)Reverse voltage VR: 6 V; (4)Power dissipation P: 70 mW; (5)Collector-emitter voltage VCEO: 70 V; (6)Emitter-collector voltage VECO: 6 V; (7)Collector current IC: 50 mA; (8)Collector power dissipation PC: 150 mW; (9)Total power dissipation Ptot: 170 mW; (10)Operating temperature Topr: - 30 to + 100 ℃; (11)Storage temperature Tstg: - 40 to + 125 ℃; (12)Soldering temperature Tsol: 260 ℃.
Features
PC3H7D features: (1)Mini-flat package; (2)Half pitch type (lead pitch: 1.27mm); (3)Isolation voltage (Viso: 2 500Vrms); (4)Applicable to infrared ray reflow (230℃, for MAX. 30s); (5)High reliability; (6)Taping package PC3H7 (1ch); (7)Recognized by UL, file No. E64380, Approved by VDE, No.5922UG.

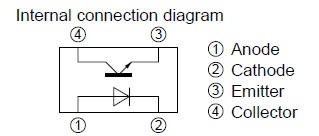

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

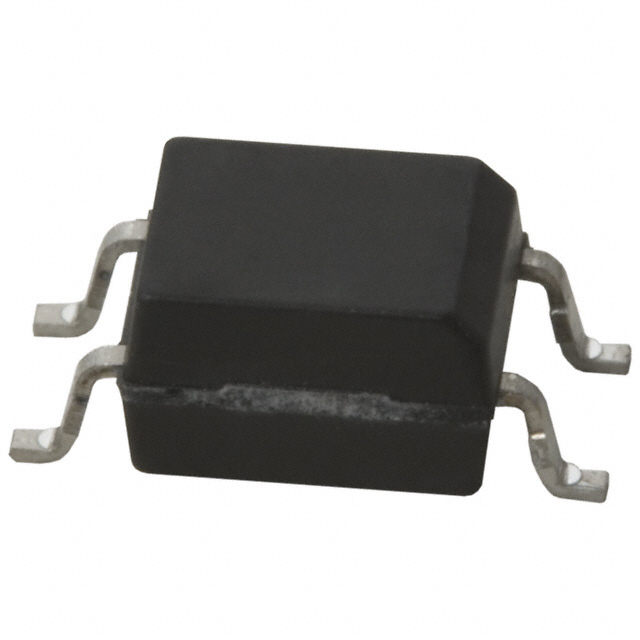

 PC3H7D |
|
PHOTOCOUPLER TRAN OUT 4-SMD |
Data Sheet |
Negotiable |
|
||||||||||||
 |
PC3H7DJ0000F |
Sharp Microelectronics |
Transistor Output Optocouplers 120-240% CTR ranked PC3H7J00000F |
Data Sheet |
|
|
||||||||||||
