IL300-F

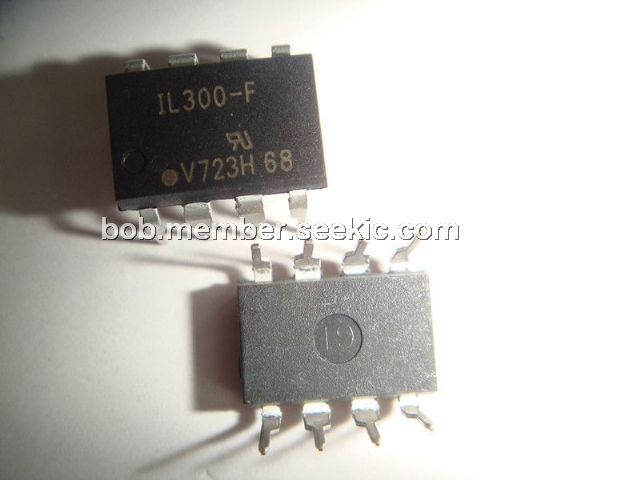

Linear Optocoupler, DIP, 5300 VRMS, 15 mW, 250 mA, IL300-F

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.07~0.08 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.07~0.08

PartNumber:: IL300-F

Brand:: Vishay Siliconix - Vishay | Pack: DIP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Luisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-12

From Other Seller

Part Number:IL300-F
US $0.07 - 0.08
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
AT45DB161B-TI

US $0.90 - 2.00 / Piece
(0) Remove
Quantity:

piece

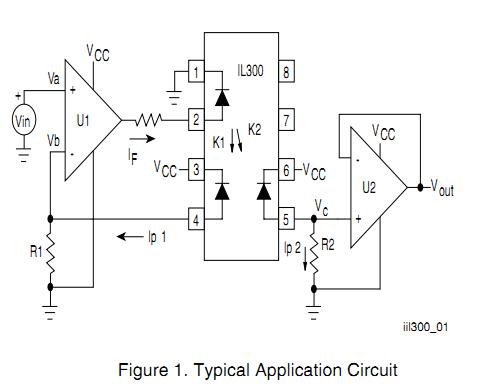

Product Summary

The IL300-F is a Linear Optocoupler. It consists of an AlGaAs IRLED irradiating an isolated feedback and an output PIN photodiode in a bifurcated arrangement. The IL300-F feedback photodiode captures a percentage of the LED’s flux and generates a control signal (IP1) that can be used to servo the LED drive current. This technique compensates for the LED’s non-linear, time, and temperature characteristics. The IL300-F output PIN photodiode produces an output signal (IP2) that is linearly related to the servo optical flux created by the LED. The time and temperature stability of the input-output coupler gain (K3) is insured by using matched PIN photodiodes that accurately track the output flux of the LED. The applications of the IL300-F include Power Supply Feedback Voltage/Current, Medical Sensor Isolation, Audio Signal Interfacing, Isolated Process Control Transducers and Digital Telephone Isolation.

Parametrics

IL300-F absolute maximum ratings: (1)Power dissipation, Pdiss: 160 mW; (2)Derate linearly from 25℃: 2.13 mW/℃; (3)Forward current, IF: 60 mA; (4)Surge current (pulse width < 10 μs), IPK: 250 mA; (5)Reverse voltage, VR: 5.0 V; (6)Thermal resistance, Rth: 470 K/W; (7)Junction temperature, Tj: 100℃.

Features

IL300-F features: (1)Couples AC and DC signals; (2)0.01 % Servo Linearity; (3)Wide Bandwidth, > 200 kHz; (4)High Gain Stability, ± 0.05 %/℃; (5)Low Input-Output Capacitance; (6)Low Power Consumption, < 15 mW; (7)Isolation Test Voltage, 5300 VRMS, 1.0 sec; (8)Internal Insulation Distance, > 0.4 mm for VDE; (9)Lead-free component; (10)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.
