Product Summary
The ps7141l-2a-e3-a is a solid state relay containing GaAs LEDs on the light emitting side (input side) and MOS FETs on the output side. It is suitable for analog signal control because of their low offset and high linearity. The ps7141l-2a-e3-a has a surface mount type lead. The device is used in Exchange equipment, Measurement equipment, FA/OA equipment.
Parametrics
ps7141l-2a-e3-a absolute maximum ratings: (1)Break Down Voltage VL: 400 V; (2)Continuous Load Current IL: 150 mA; (3)Pulse Load Current (AC/DC Connection) ILP: 300 mA; (4)Power Dissipation PD: 375 mW/ch; (5)Isolation Voltage BV: 1500 Vr.m.s.; (6)Total Power Dissipation PT: 850 mW; (7)Operating Ambient Temperature TA: -40 to +85 ℃; (8)Storage Temperature Tstg: -40 to +100 ℃.
Features
ps7141l-2a-e3-a features: (1)2 channel type (1 a + 1 a output); (2)Low LED operating current (IF = 2 mA); (3)Designed for AC/DC switching line changer; (4)Small package (8-pin DIP); (5)Low offset voltage; (6)PS7141L-2A: Surface mount type; (7)UL approved: File No. E72422 (S); (8)BSI approved: No. 8245/8246; (9)CSA approved: No. CA 101391.

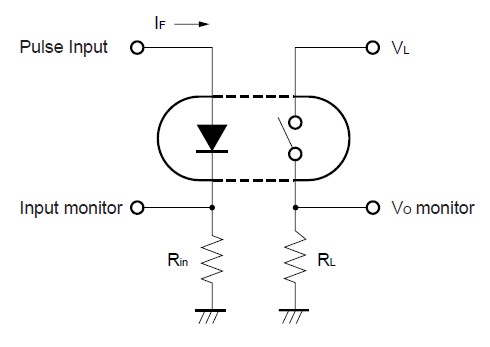

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

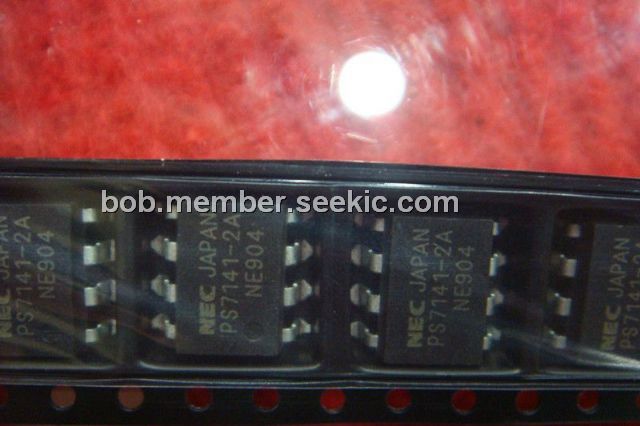

 PS7141L-2A-E3-A |
CEL |
Solid State Relays 2-Ch Normally Open |
Data Sheet |
|
|
||||||
