Product Summary
The S-875077CUP is a low-power high withstand-voltage regulator with a reset function, which integrates high-precision voltage detection and voltage regulation circuits on a single chip. The S-875077CUP has lineups for lithium-ion battery packs. It is used in Constant voltage power supply or reset circuit of battery-powered equipment, VTR, camera, communications equipment and others, Lithium-ion secondary battery pack.
Parametrics
S-875077CUP absolute maximum ratings: (1)Input voltage VIN: VSS-0.3 to VSS+26 V; VCD(A/B/F type): VSS-0.3 to VIN+0.3 V, VPF(C/G type): VSS-0.3 to VSS+26 V; (2)Output voltage VOUT: VSS-0.3 to VIN+0.3; (3)Output voltage of voltage detector VOR: VSS-0.3 to VSS+26; (4)Power dissipation PD: 500 (When not mounted on board) mW; (5)Operating ambient temperature Topr: -40 to +85 ℃; (6)Storage temperature Tstg: -40 to +125 ℃.
Features
S-875077CUP features: (1)Accuracy of output voltage: ±2.4 %, 2.5 V to 5.8 V (0.1 V step); (2)Accuracy of detection voltage: ±2.4 % (For the F type, the release voltage is ±1.1 %), 2.1 V to 11.3 V (0.1 V step); (3)Low I/O voltage difference: 0.15 V typ. (at IOUT=30 mA, VOUT=5.0 V), 0.45 V typ. (at IOUT=30 mA, VOUT=3.0 V); (4)Low current consumption: At Operation mode: 8 μA max., At Shutdown mode: 3.5 μA max. (Available for the C/E/G type); (5)Wide operating voltage range: 24 V max.; (6)Wide operating temperature range: .40℃ to +85℃; (7)Built-in delay circuit or shutdown circuit; (8)Built-in short-circuit protection circuit; (9)Small package: SOT-89-5; (10)Lead-free products.

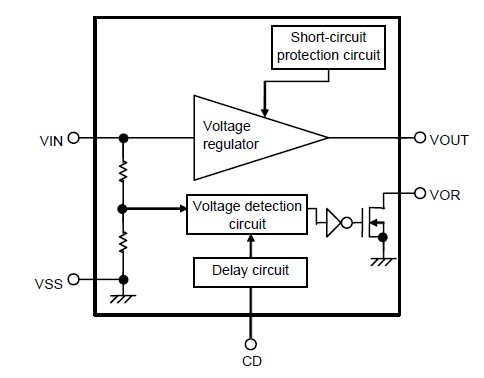

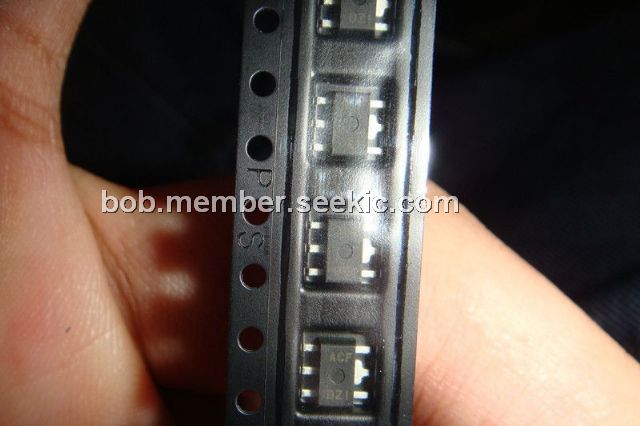

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 S-875077CUP-ACF-T2 |
Seiko Instruments |
Voltage Detectors / Monitors 5.0V with 7.7V Detec |
Data Sheet |
Negotiable |
|
||||
 |
S-875077CUP-ACFT2G |
Seiko Instruments |
Voltage Detectors / Monitors 5.0V with 7.7V Detec |
Data Sheet |
Negotiable |
|
||||
