Product Summary

The PC817XPJ is a High Density Mounting Type Photocoupler. It is applied to the outline and characteristics of Photocoupler.

Parametrics

PC817XPJ absolute maximum ratings: (1)Forward current IF: 50 mA; (2)Peak forward current IFM: 1 A; (3)Reverse voltage VR: 6 V; (4)Power dissipation P: 70 mW; (5)Collector-emitter voltage VCEO: 35 V; (6)Emitter-collector voltage VECO: 6 V; (7)Collector current IC: 50 mA; (8)Collector power dissipation PC: 150 mW; (9)Total power dissipation P tot: 200 mW; (10)Operating temperature Topr: - 30 to + 100 ℃; (11)Storage temperature Tstg: - 55 to + 125 ℃; (12)Soldering temperature Tsol: 260 ℃.

Features

PC817XPJ features: (1)Current transfer ratio; (2)High isolation voltage between input and output; (3)Compact dual-in-line package; (4)Recognized by UL, file No. E64380.

Diagrams

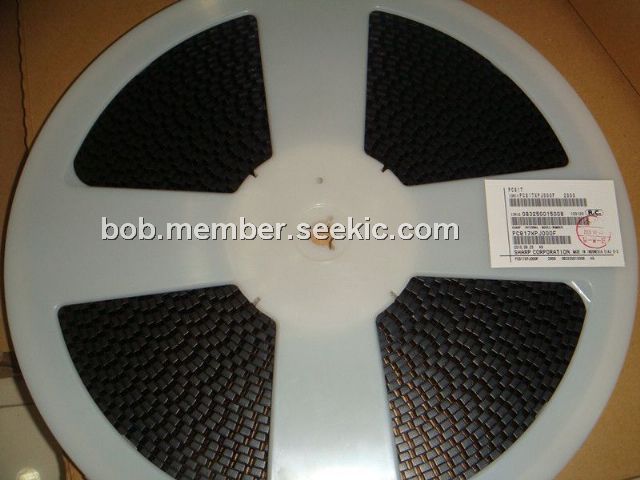

PC817XPJ diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PC817XPJ000F
PC817XPJ000F
Sharp Microelectronics
Transistor Output Optocouplers SMT PC817XJ0000F
Data Sheet
Negotiable
