Product Summary

The PC817B is a High Density Mounting Type Photocoupler. The applications of the PC817B are Computer terminals, System appliances, measuring instruments, Registers, copiers, automatic vending machines, Electric home appliances, such as fan heaters, etc., Signal transmission between circuits of different potentials and impedances.

Parametrics

PC817B absolute maximum ratings: (1)Forward current IF: 50 mA; (2)Peak forward current IFM: 1 A; (3)Reverse voltage VR: 6 V; (4)Power dissipation P: 70 mW; (5)Collector-emitter voltage VCEO: 35 V; (6)Emitter-collector voltage VECO: 6 V; (7)Collector current IC: 50 mA; (8)Collector power dissipation PC: 150 mW; (9)Total power dissipation P tot: 200 mW; (10)Operating temperature Topr: - 30 to + 100 ℃; (11)Storage temperature Tstg: - 55 to + 125 ℃; (12)Soldering temperature Tsol: 260 ℃.

Features

PC817B features: (1)Current transfer ratio; (2)High isolation voltage between input and output; (3)Compact dual-in-line package; (4)Recognized by UL, file No. E64380.

Diagrams

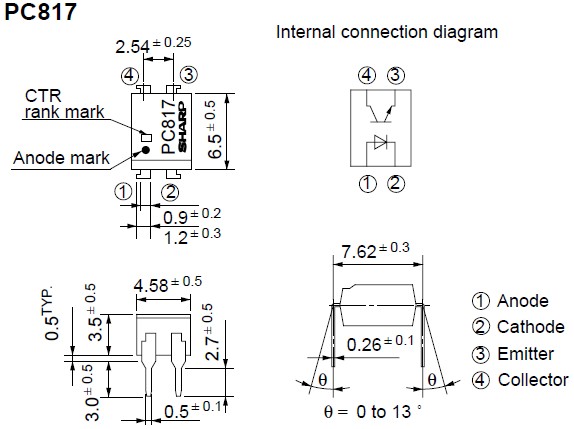

PC817B dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

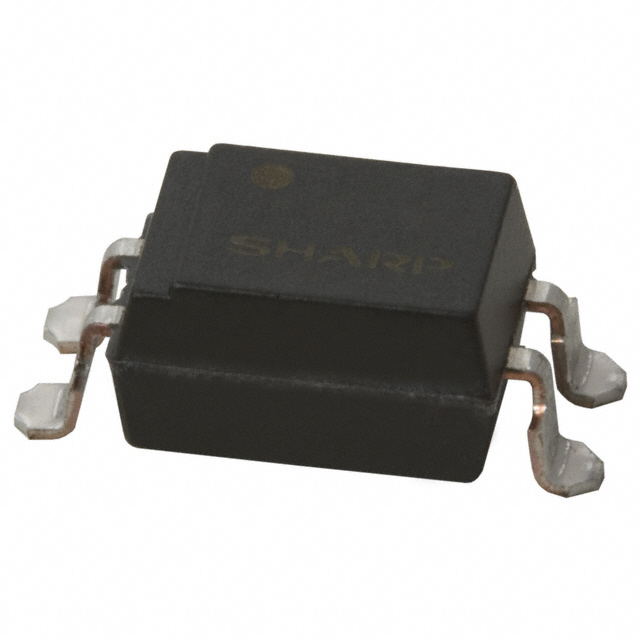

PC817B
PC817B

Other


Data Sheet

Negotiable
