Product Summary
The MOC3041M is a 6-Pin DIP Zero-Cross Optoisolator. The MOC3041M consists of a AlGaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver. The device is designed for use with a triac in the interface of logic systems to equipment powered from 115 VAC lines, such as teletypewriters, CRTs, solid-state relays, industrial controls, printers, motors, solenoids and consumer appliances, etc. The applications of the MOC3041M include Solenoid/valve controls, Lighting controls, Static power switches, AC motor drives, Temperature controls, E.M. contactors, AC motor starters and Solid state relays.
Parametrics
MOC3041M absolute maximum ratings: (1)Storage Temperature TSTG: -40 to +150℃; (2)Operating Temperature TOPR: -40 to +85℃; (3)Lead Solder Temperature TSOL: 260℃ for 10 sec; (4)Junction Temperature Range TJ: -40 to +100℃; (5)Isolation Surge Voltage, VISO: 7500 Vac(pk).
Features
MOC3041M features: (1)Simplifies logic control of 115 VAC power; (2)Zero voltage crossing; (3)dv/dt of 2000 V/μs typical, 1000 V/μs guaranteed; (4)VDE recognized (File # 94766), ordering option V.

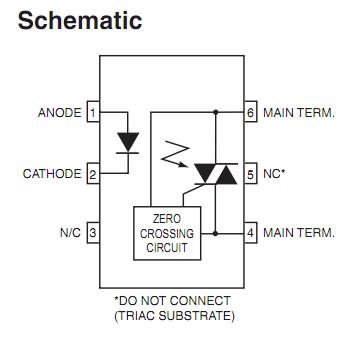

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MOC3041M |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers DIP-6 ZERO TRIAC |
Data Sheet |
|
|
||||||||||||
|
MOC3041M_Q |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers DIP-6 ZERO TRIAC |
Data Sheet |
Negotiable |
|
||||||||||||
