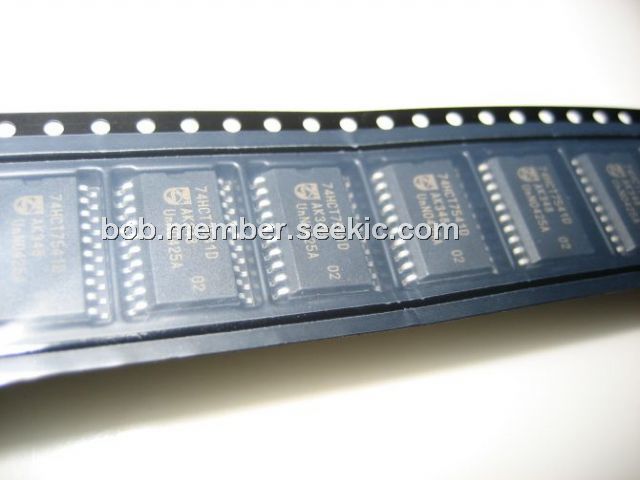

Product Summary
The 74hct7541d is a high-speed Si-gate CMOS device and is pin compatible with Low-power Schottky TTL(LSTTL). The 74hct7541d is specified in compliance with JEDEC standard No. 7A. The 74hct7541d provides eight non-inverting buffer/line drivers with 3-state outputs and Schmitt-trigger action. The 3-state outputs are controlled by the output enable inputs OE1 and OE2. A HIGH on OEn causes the outputs to assume a high-impedance OFF-state.
Parametrics
74hct7541d absolute maximum ratings: (1)supply voltage:-0.5 to +7 V; (2)input clamping current: VI < -0.5 V or VI >VCC +0.5 V: ±20 mA; (3)output clamping current: VO < -0.5 V or VO >VCC +0.5V: ±20 mA; (4)output current: -0.5 V < VO < VCC +0.5V: ±35 mA; (5)supply current: 70 mA; (6)ground current: -70mA; (7)storage temperature: -65 to +150℃; (8)total power dissipation: 500mW.
Features
74hct7541d features: (1)Non-inverting outputs; (2)Low-power dissipation; (3)ESD protection: HBM JESD22-A114F exceeds 2000 V, MM JESD22-A115-A exceeds 200 V; (4)Multiple package options; (5)Specified from -40 to +85℃ and from -40 to +125℃.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HCT7541D |
NXP Semiconductors |
Buffers & Line Drivers OCT BUF/DVR SCH TRIG |
Data Sheet |
Negotiable |
|
||||||||||||
|
74HCT7541D,112 |
NXP Semiconductors |
Buffers & Line Drivers OCT BUF/DVR SCH TRIG |
Data Sheet |
|
|
||||||||||||
|
74HCT7541D,118 |
NXP Semiconductors |
Buffers & Line Drivers OCT SCHM TRIG BUF/LINE N/INV |
Data Sheet |
|
|
||||||||||||
