Product Summary

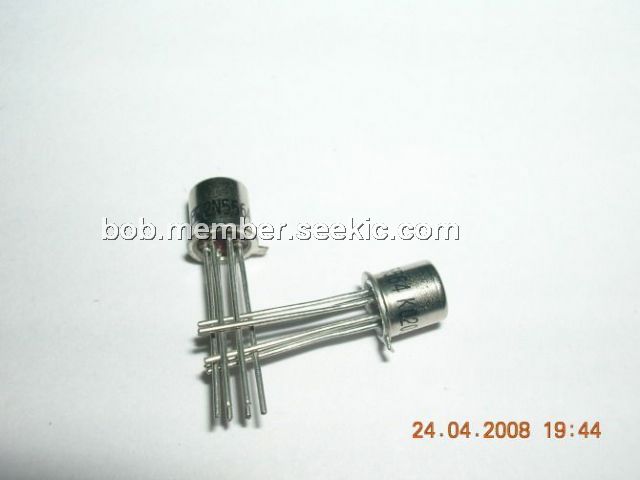

The 2n5564 is a matched pair of JFETs mounted in a TO-71 package. The 2n5564 is a two-chip design reduces parasitics for good performance at high frequency while ensuring extremely tight matching. The 2n5564 is a series features high breakdown voltage (V(BR)DSS typically > 55 V), high gain (typically > 9 mS), and <5 mV offset between the two die. Application of the 2n5564 include Wideband Differential Amps, High-Speed, Temp-Compensated, Single-Ended Input Amps, High-Speed Comparators, Impedance Converters,Matched Switches.
Parametrics
2n5564 absolute maximum ratings: (1)2N5564: -0.5to-3 -40V 7.5mS -3pA 5mV; (2)2N5565: -0.5to-3 -40V 7.5mS -3pA 10mV; (3)2N5566: -0.5to-3 -40V 7.5mS -3pA 20mV.
Features
2n5564 features: (1)Two-Chip Design; (2)High Slew Rate; (3)Low Offset/Drift Voltage; (4)Low Gate Leakage: 3 pA; (5)Good CMRR: 76 dB; (6)Minimum Parasitics.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2N5564 |
Vishay/Siliconix |
JFET 40V 5mA |
Data Sheet |
Negotiable |
|
||||
|
2N5564-E3 |
Vishay/Siliconix |
JFET 40V 5mA |
Data Sheet |
Negotiable |
|
||||
