Product Summary

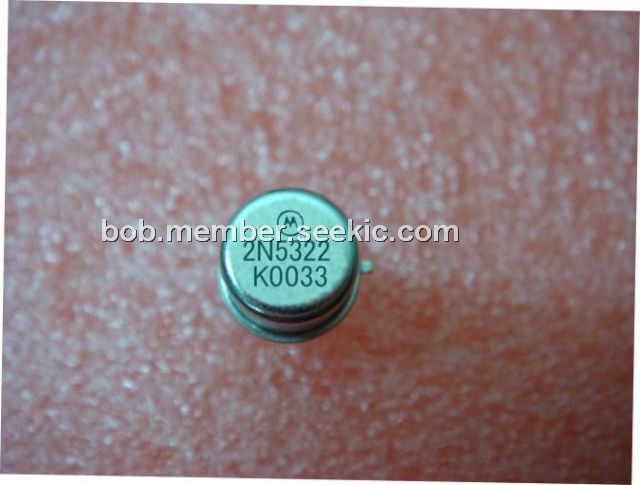

The 2n5322 is a silicon epitaxial planar PNP transistor in Jedec TO-39 metal case. The 2n5322 is especially intended for high-voltage medium power application in industrial and commercial equipments. The complementary NPN types is a respectively the 2n5322.

Parametrics

2n5322 absolute maximum ratings: (1)Collector-Base Voltage (IE = 0): -100V -75 V; (2)Collector-Emitter Voltage (VBE = -1.5V): -100V -75 V; (3)Collector-Emitter Voltage (IB = 0): -75V -50 V; (4)Emitter-Base Voltage (IC = 0): -6V -5 V; (5)Collector Current: -1.2 A; (6)Collector Peak Current:-2 A; (7)Base Current: -1 A; (8)Total Dissipation at Tamb = 25 °C 1 W; (9)Total Dissipation at Tc = 25 °C 10 W; (10)Tj Storage and Junction Temperature: -65 to 200 °C.

Features

2n5322 features: (1)silicon epitaxial planar pnp transistors; (2)medium power amplifier; (3)npn complements is a 2n5322.

Diagrams

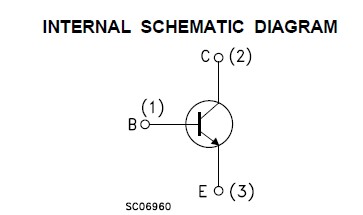

2n5322 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
2N5322
2N5322
Central Semiconductor
Transistors Bipolar (BJT) PNP 75V 2A
Data Sheet
0-1: $0.98
1-25: $0.94
25-100: $0.89
100-250: $0.85
