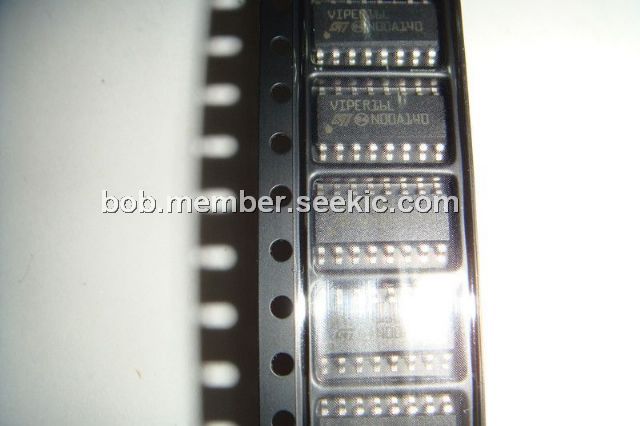

viper16ldtr

off-line converter, 16SOIC, 800V, 60 kHz, 20 mA, viper16ldtr

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.52~0.70 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.52~0.70

PartNumber:: viper16ldtr

Brand:: STMicroelectronics - ST | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Luisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-12

From Other Seller

Part Number:viper16ldtr
US $0.52 - 0.70
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

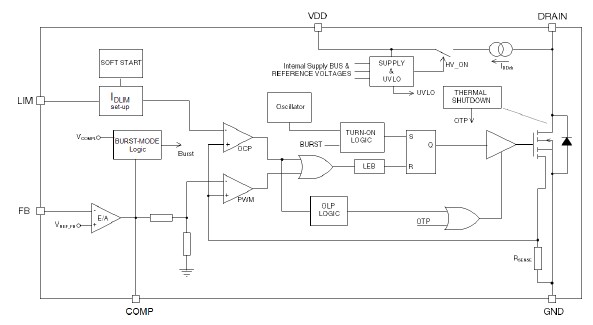

The viper16ldtr is an off-line converter with an 800 V avalanche ruggedness power section, a PWM controller, user defined overcurrent limit, protection against feedback network disconnection, hysteretic thermal protection, soft start up and safe auto restart after any fault condition. The viper16ldtr is able to power itself directly from the rectified mains, eliminating the need for an auxiliary bias winding. The viper16ldtr is used in Replacement of capacitive power supply, Auxiliary power supply for appliances, Power metering, LED drivers.

Parametrics

viper16ldtr absolute maximum ratings: (1)VDRAIN Drain-to-source (ground) voltage: 800 V; (2)EAV Repetitive avalanche energy (limited by TJ = 150 ℃): 2 mJ; (3)IAR Repetitive avalanche current (limited by TJ = 150 ℃): 1 A; (4)IDRAIN Pulse drain current (limited by TJ = 150 ℃): 2.5 A; (5)VCOMP Input pin voltage: -0.3 to 3.5 V; (6)VFB Input pin voltage: -0.3 to 4.8 V; (7)VLIM Input pin voltage: -0.3 to 2.4 V; (8)VDD Supply voltage: -0.3 V; (9)IDD Input current: 20 mA; (10)PTOT Power dissipation: 1 W; (11)TJ Operating junction temperature range: -40 to 150 ℃; (12)TSTG Storage temperature: -55 to 150 ℃.

Features

viper16ldtr features: (1)800 V avalanche rugged power section; (2)PWM operation with frequency jittering for low EMI; (3)Operating frequency: 60 kHz for L type, 115 kHz for H type; (4)No need of auxiliary winding for low power application; (5)Standby power < 50 mW at 265 VAC; (6)Limiting current with adjustable set point; (7)On-board soft-start; (8)Safe auto-restart after a fault condition; (9)Hysteretic thermal shutdown.
