Product Summary

The l200cv is a monolithic integrated circuit for voltage and current programmable regulation. It is available in Pentawatt ackage or 4-lead TO-3 metal case. Current limiting, power limiting, thermal shutdown and input overvoltage protection (up to January 2000 Pentawatt TO-3 (4 lead)60 V) make the L200 virtually blow-out proof. The l200cv can be used to replace fixed voltage regulators when high output voltage precision is required and eliminates the need to stock a range of fixed voltage regulators.

Parametrics

l200cv absolute maximum ratings: (1)Vi, DC Input Voltage: 40 V; (2)Vi, Peak Input Voltage (10 ms): 60 V; (3)△Vi-o, Dropout Voltage: 32 V; (4)Io, Output Current internally: limited; (5)Ptot, Power Dissipation internally: limited; (6)Tstg, Storage Temperature: -55 to 150 ℃; (7)Top, Operating Junction Temperature for L200C: -25 to 150 ℃.

Features

l200cv features: (1)adjustable output current up to 2 a (guaranteed up to tj = 150 ℃); (2)adjustable output voltage down to 2.85 v; (3)input overvoltage protection (up to 60 v, 10 ms); (4)short circuit protection; (5)output transistor s.o.a. protection; (6)thermal overload protection; (7)low bias current on regulation pin; (8)low standby current drain.

Diagrams

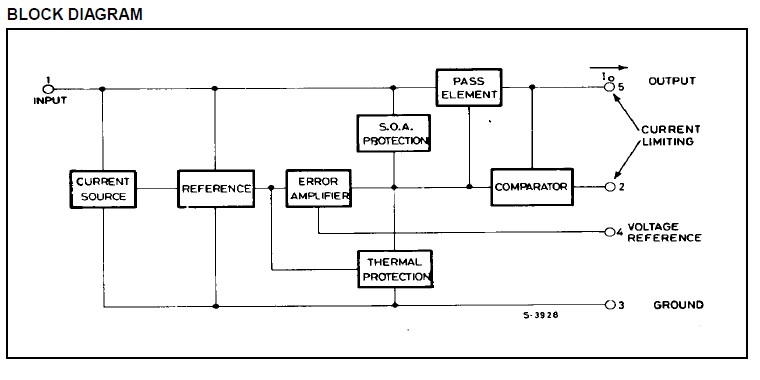

l200cv bloc kdiagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
L200CV
L200CV

STMicroelectronics

Linear Regulators - Standard Adj Voltage/Current

Data Sheet

0-1: $2.15
1-10: $1.73
10-100: $1.57
100-250: $1.42
