Product Summary

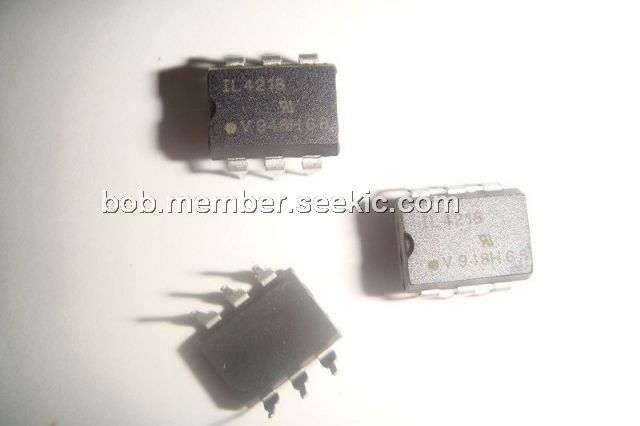

The il4218 is an Optocoupler. The il4218 consists of an AlGaAs IRLED optically coupled to a pair of photosensitive non-zero crossing SCR chips and are connected inversely parallel to form a TRIAC. These three semiconductors are assembled in a six pin 0.3 inch dual in-line package. The applications of the il4218 include Solid state relay, Industrial controls, Office equipment and Consumer appliances.
Parametrics
il4218 absolute maximum ratings: (1)Reverse voltage, VR: 6V; (2)Forward current, IF: 60 mA; (3)Surge current, IFSM: 2.5 A; (4)Power dissipation, Pdiss: 100 mW; (5)Derate linearly from 25℃: 1.33 mW/℃; (6)Thermal resistance, Rth: 750℃/W; (7)Storage temperature, Tstg: - 55 to + 150℃; (8)Ambient temperature, Tamb: - 55 to + 100℃.
Features
il4218 features: (1)High input sensitivity IFT = 1.3 mA; (2)300 mA on-state current; (3)High static dV/dt 10000 V/μs, typical; (4)Very low leakage < 10 μA; (5)Isolation test voltage 5300 VRMS; (6)Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() IL4218 |
![]() Vishay Semiconductors |
![]() Triac & SCR Output Optocouplers Phototriac Output Very Low Input Curr |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() IL4218-X001 |
![]() Vishay Semiconductors |
![]() Triac & SCR Output Optocouplers Phototriac Output, Low Input Current |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() IL4218-X006 |
![]() Vishay Semiconductors |
![]() Triac & SCR Output Optocouplers Phototriac Output, Low Input Current |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() IL4218-X007 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() IL4218-X009 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() IL4218-X016 |
![]() Vishay Semiconductors |
![]() Triac & SCR Output Optocouplers Phototriac Output, Low Input Current |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() IL4218-X017 |
![]() Vishay Semiconductors |
![]() Triac & SCR Output Optocouplers Phototriac Output, Low Input Current |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() IL4218-X019 |
![]() Vishay Semiconductors |
![]() Triac & SCR Output Optocouplers Phototriac Output, Low Input Current |
![]() Data Sheet |
![]()
|
|
