Product Summary
The PS9115 is an optically coupled high-speed, totem pole output isolator containing a GaAlAs LED on the input side and a photodiode and a signal processing circuit on the output side on one chip. The PS9115 is specified high CMR, high CTR and pulse width distortion with operating temperature. It is used in Measurement equipment, PDP, Line Receiver for FA Network.
Parametrics
PS9115 absolute maximum ratings: (1)Forward Current IF: 30mA; (2)Reverse Voltage VR: 5V; (3)Detector Supply Voltage VCC: 7V; (4)Output Voltage VO: 7V; (5)High Level Output Current IOH: -5mA; (6)Low Level Output Current IOL: 13mA; (7)Power Dissipation PC: 130mW; (8)Isolation Voltage BV: 2500Vr.m.s.; (9)Operating Ambient Temperature TA: -40 to +85℃; (10)Storage Temperature Tstg: -55 to +125℃.
Features
PS9115 features: (1)High common mode transient immunity (CMH, CML = ±20 kV/μs TYP.); (2)Small package (5-pin SOP); (3)Pulse width distortion ( tPHL - tPLH = 7 ns TYP.); (4)High-speed (10 Mbps); (5)High isolation voltage (BV = 2 500 Vr.m.s.); (6)Totem pole output; (7)Ordering number of taping product: PS9115-F3, F4: 2 500 pcs/reel; (8)Pb-Free product; (9)Safety standards: UL approved: File No. E72422; DIN EN60747-5-2 (VDE0884 Part2) approved No. 40008902 (Option).

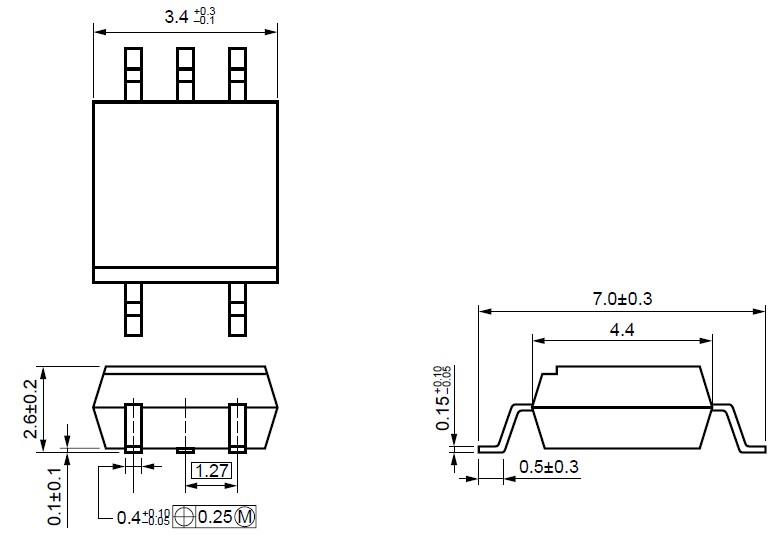

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
PS9115 |
CEL |
High Speed Optocouplers 10Mbps Totem Pole |
Data Sheet |
Negotiable |
|
|||||
PS9115-A |
CEL |
High Speed Optocouplers 10Mbps Totem Pole |
Data Sheet |
Negotiable |
|
|||||
PS9115-AX |
CEL |
High Speed Optocouplers Digital Fast HI V Couplr NL |
Data Sheet |
Negotiable |
|
|||||
PS9115-F3-A |
CEL |
High Speed Optocouplers 10Mbps Totem Pole |
Data Sheet |
Negotiable |
|
|||||
PS9115-F3-AX |
CEL |
High Speed Optocouplers 5pin SOP Digital TP HI CMRR Cuplr NL |
Data Sheet |
Negotiable |
|
|||||
PS9115-F4-A |
PHOTOCOUPLER HS DGTL TP OUT 5 |
Data Sheet |
Negotiable |
|
||||||
PS9115-F4-AX |
CEL |
High Speed Optocouplers 5pin SOP Digital TP HI CMRR Cuplr NL |
Data Sheet |
Negotiable |
|
|||||
PS9115-V-F4 |
Other |
Data Sheet |
Negotiable |
|
