Product Summary

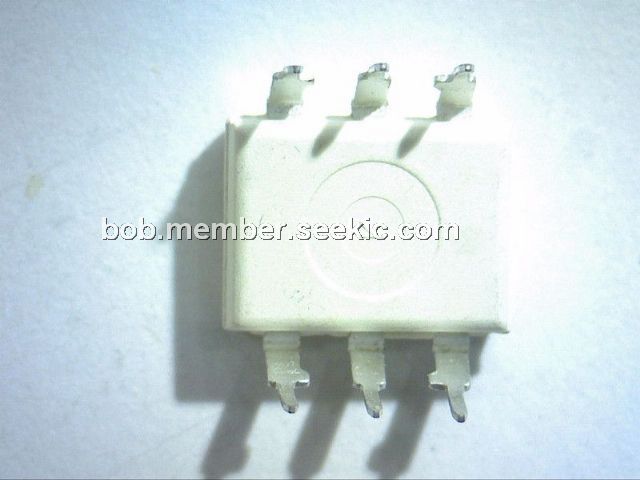

The MOC3062TVM is a 6-pin DIP zero-cross phototriac driver optocoupler. It consists of gallium arsenide infrared emitting diodes optically coupled to monolithic silicon detectors performing the functions of Zero Voltage Crossing bilateral triac drivers. The MOC3062TVM is designed for use with a triac in the interface of logic systems to equipment powered from 115/240 Vac lines, such as solid–state relays, industrial controls, motors, solenoids and consumer appliances, etc. The applications of the MOC3062TVM include: Solenoid/valve controls, Static power switches, Temperature controls, AC motor starters, Lighting controls, AC motor drives, E.M. contactors, Solid state relays.
Parametrics
MOC3062TVM absolute maxing ratings: (1)Storage Temperature TSTG: -40 to +150 ℃; (2)Operating Temperature TOPR: -40 to +85 ℃; (3)Lead Solder Temperature TSOL: 260 for 10 sec ℃; (4)Junction Temperature Range TJ: -40 to +100 ℃; (5)Isolation Surge Voltage(peak AC voltage, 60Hz, 1 sec duration)VISO: 7500 Vac(pk); (6)Total Device Power Dissipation @ 25℃ PD: 250 mW; Derate above 25℃: 2.94 mW/℃; (7)Continuous Forward Current IF: 60 mA; (8)Reverse Voltage VR: 6 V.
Features
MOC3062TVM features: (1)Simplifies Logic Control of 115/240 Vac Power; (2)Zero Voltage Crossing; (3)dv/dt of 600 V/μs Guaranteed; (4)VDE recognized (File # 94766); (5)Underwriters Laboratories (UL) recognized (File #E90700, volume 2).

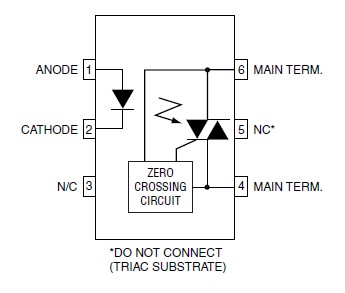

Diagrams
