Product Summary

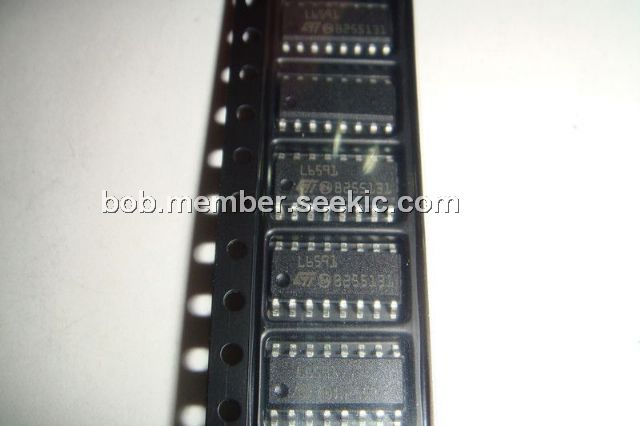

The L6591TR is a double-ended PWM controller for ZVS half-bridge. The L6591TR provides complementary PWM control, where the high-side switch is driven ON for a duty cycle D and the low-side switch for a duty cycle 1-D, with D 50 %. An externally programmable dead-time inserted between the turn-off of one switch and the turn-on of the other one guarantees soft-switching and enables high-frequency operation. The applications of the L6591TR include: High power AC-DC adapter/charger, Desktop PC, entry-level server, Telecom SMPS.
Parametrics
L6591TR absolute maximum ratings: (1)VHVSTART Voltage range (referred to ground): -0.3 to 700 V; (2)VBOOT Floating supply voltage: -1 to 618 V; (3)VFGND Floating ground voltage: -3 to VBOOT -18 V; (4)dVFGND/dt Floating ground slew rate: 50 V/ns; (5)Analog inputs and outputs: -0.3 to 7 V; (6)ISEN Current sense input: -3 to 7 V; (7)PTOT Power dissipation @ TA = 50 ℃: 0.75 W; (8)TJ Junction temperature operating range: -40 to 150 ℃; (9)TSTG Storage temperature: -55 to 150 ℃.
Features
L6591TR features: (1)Complementary PWM control for soft-switched half-bridge with programmable dead-time; (2)Up to 500 kHz operating frequency; (3)On-board high-voltage start-up; (4)Advanced light load management; (5)Adaptive UVLO; (6)Pulse-by-pulse OCP; (7)OLP (latched or autorestart); (8)Transformer saturation detection; (9)Interface with PFC controller; (10)Latched disable input; (11)Input for power-on sequencing or brownout protection; (12)Programmable soft-start; (13)4 % precision external reference.

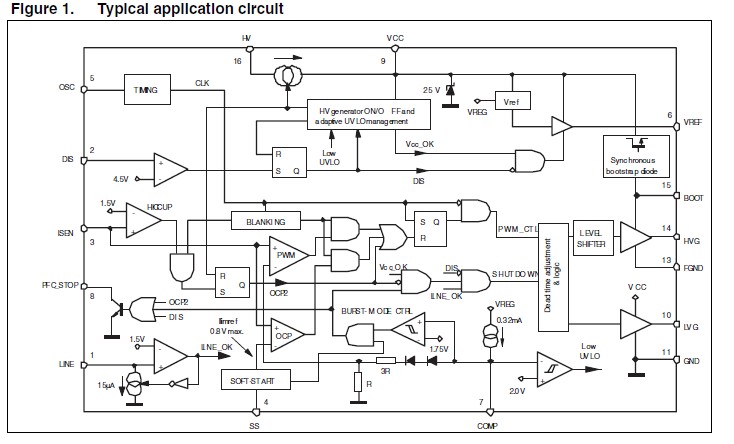

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 L6591TR |
STMicroelectronics |
Switching Converters, Regulators & Controllers PWM CONTROLLER ZVS HALF-BRIDGE |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
L6590AN |
STMicroelectronics |
Switching Converters, Regulators & Controllers 700 Volt Monolithic |
Data Sheet |
|
|
||||||||||||
|
L6590D |
STMicroelectronics |
Switching Converters, Regulators & Controllers 700 Volt Monolithic |
Data Sheet |
Negotiable |
|
||||||||||||
|
L6590D013TR |
STMicroelectronics |
Switching Converters, Regulators & Controllers 700 Volt Monolithic |
Data Sheet |
Negotiable |
|
||||||||||||
|
L6590ED |
STMicroelectronics |
Power Factor Correction ICs STEP DOWN SWITCH REG |
Data Sheet |
Negotiable |
|
||||||||||||
|
L6590ED013TR |
STMicroelectronics |
Power Factor Correction ICs STEP DOWN SWITCH REG |
Data Sheet |
Negotiable |
|
||||||||||||
|
L6590N |
STMicroelectronics |
Switching Converters, Regulators & Controllers 700 Volt Monolithic |
Data Sheet |
Negotiable |
|
||||||||||||
